Cudy

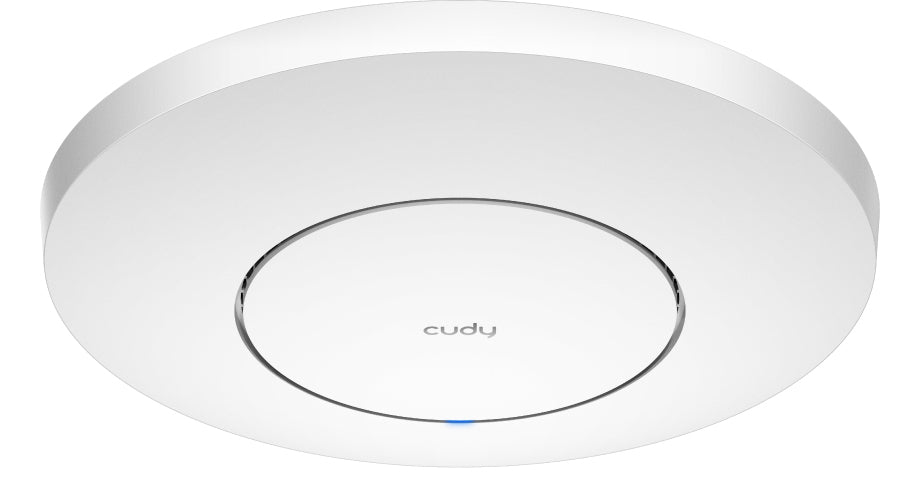

Cudy AP3000 wireless access point 2976 Mbit/s White Power over Ethernet (PoE)
Cudy AP3000 wireless access point 2976 Mbit/s White Power over Ethernet (PoE)
Regular price
£99.11 GBP
Regular price
Sale price
£99.11 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Premium Wi-Fi 6 with 2.5G Port
Impress your customers with fast and responsive Wi-Fi with multi-gig bandwidth, enabled by the highest 160 MHz channel width in Wi-Fi 6. A shielded 2.5G Ethernet port allows more devices to stream simultaneously without buffering, even in a complex electromagnetic environment.
Connects 150 Devices with 512 MB RAM
1.3 GHz dual-core CPU, large RAM, and the upgraded UL/DL MU-MIMO and OFDMA technologies significantly reduce transmission latency to and from the AP when connecting multiple devices.
5 Antennas and 3+2 Strucutre Boost Coverage
Five antennas plus 3+2 structure create more paths to bypass obstacles. Beamforming tracks connected devices' directions and boosts signal towards them.
Seamless Coverage with Fast Roaming
Mesh support (802.11k/v) allows clients to switch between access points seamlessly, ensuring uninterrupted Wi-Fi calling or live streaming when moving around. This feature requires a Cudy Wi-Fi router/VPN router/access point controller as a gateway with firmware newer than 15.28.
Advanced Business Features
Captive Portal
Improve your brand awareness by displaying a customized login page for new clients (AP1200/AP1300 models will soon support this feature).
Band Steering
Assign devices to less congested bands.
Auto Channel Selection
Avoid signal interruptions with nearby access points.
Auto Mesh Optimization
Form mesh backhaul via less congested routes automatically.
Multi-Mode for Multiple Scenarios
Access Point
Simply create a Wi-Fi spot behind a router.
Wi-Fi Router
Please use the Router mode when PPPoE authorization or creating a separate subnet is needed.
Range Extender
The Wi-Fi Extender (repeater) mode extends existing Wi-Fi coverage to hard-to-cover areas.
WISP
WISP extends Wi-Fi but creates a subnet for connected devices, so it's safer than extender mode.
Flexible Wired-and-Wireless Hybrid Backhaul
Simple Wireless Mesh Backhaul
Hybrid Backhaul for Higher Performance
Versatile Powering and Installation
Flexible PoE/DC Power Options
Supports 802.3at/af PoE, 48-57V Passive PoE, 12-48V DC Power input. Please note: DC adapter is not included in the package.
Versatile Mounting
Ceiling Mounting
Wall Mounting
Centralized AP Management
Easily manage up to 200 access points with Cudy AP Controller（Model:C200P）, enabling efficient batch configuration and firmware updates through a unified interface.
Impress your customers with fast and responsive Wi-Fi with multi-gig bandwidth, enabled by the highest 160 MHz channel width in Wi-Fi 6. A shielded 2.5G Ethernet port allows more devices to stream simultaneously without buffering, even in a complex electromagnetic environment.
Connects 150 Devices with 512 MB RAM
1.3 GHz dual-core CPU, large RAM, and the upgraded UL/DL MU-MIMO and OFDMA technologies significantly reduce transmission latency to and from the AP when connecting multiple devices.
5 Antennas and 3+2 Strucutre Boost Coverage
Five antennas plus 3+2 structure create more paths to bypass obstacles. Beamforming tracks connected devices' directions and boosts signal towards them.
Seamless Coverage with Fast Roaming
Mesh support (802.11k/v) allows clients to switch between access points seamlessly, ensuring uninterrupted Wi-Fi calling or live streaming when moving around. This feature requires a Cudy Wi-Fi router/VPN router/access point controller as a gateway with firmware newer than 15.28.
Advanced Business Features
Captive Portal
Improve your brand awareness by displaying a customized login page for new clients (AP1200/AP1300 models will soon support this feature).
Band Steering
Assign devices to less congested bands.
Auto Channel Selection
Avoid signal interruptions with nearby access points.
Auto Mesh Optimization
Form mesh backhaul via less congested routes automatically.
Multi-Mode for Multiple Scenarios
Access Point
Simply create a Wi-Fi spot behind a router.
Wi-Fi Router
Please use the Router mode when PPPoE authorization or creating a separate subnet is needed.
Range Extender
The Wi-Fi Extender (repeater) mode extends existing Wi-Fi coverage to hard-to-cover areas.
WISP
WISP extends Wi-Fi but creates a subnet for connected devices, so it's safer than extender mode.
Flexible Wired-and-Wireless Hybrid Backhaul
Simple Wireless Mesh Backhaul
Hybrid Backhaul for Higher Performance
Versatile Powering and Installation
Flexible PoE/DC Power Options
Supports 802.3at/af PoE, 48-57V Passive PoE, 12-48V DC Power input. Please note: DC adapter is not included in the package.
Versatile Mounting
Ceiling Mounting
Wall Mounting
Centralized AP Management
Easily manage up to 200 access points with Cudy AP Controller（Model:C200P）, enabling efficient batch configuration and firmware updates through a unified interface.
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Maximum data transfer rate | 2976 Mbit/s |
| Performance | |
| Operating modes | Wireless Access Point, Wireless Router, Wireless Extender, WISP |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Syslog | Yes |
| Country of origin | China |
| Reset button | Yes |
| Spread spectrum method | OFDMA |
| Web-based management | Yes |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| Maximum outdoor range | 200 m |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Channel bandwidth | 160 MHz |
| Maximum data transfer rate | 2976 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Chipset | MT7981BA+MT7976CN+RTL8221B |
| Flash memory | 256 MB |
| Compatible operating systems | Microso Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
| Built-in processor | Yes |
| Processor frequency | 1300 MHz |
| Wireless LAN features | |
| Maximum outdoor range | 200 m |
| Network | |
| Spread spectrum method | OFDMA |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| Bandwidth | |
| Channel bandwidth | 160 MHz |
| Management features | |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Syslog | Yes |
| Web-based management | Yes |
| Software | |
| Bundled software | Cudy Software |
| Fast roaming | Yes |
| Memory | |
| Flash memory | 256 MB |
| Features | |
| 6 GHz | No |
| Operating modes | Wireless Access Point, Wireless Router, Wireless Extender, WISP |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Spread spectrum method | OFDMA |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| Maximum outdoor range | 200 m |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Channel bandwidth | 160 MHz |
| Maximum data transfer rate | 2976 Mbit/s |
| Fast roaming | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Virtual LAN features | Tagged VLAN |
| BeamForming | Yes |
| Flash memory | 256 MB |
| Compatible operating systems | Microso Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
| Built-in processor | Yes |
| Processor frequency | 1300 MHz |
| Security | |
| Number of SSID supported | 8 |
| Security algorithms | WPA, WPA2, WPA3 |
| Guest access | Yes |
| Protocols | |
| DHCP client | Yes |
| Ports & interfaces | |
| WAN connection | Ethernet (RJ-45) |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (max) | 12 W |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power consumption (typical) | 6.1 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE |
| DC voltage range | 48-57 V |
| Design | |
| Placement | Ceiling, Wall |
| Country of origin | China |
| Product colour | White |
| Reset button | Yes |
| LED indicators | System |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 5 |
| Antenna direction type | Omni-directional |
| Technical details | |
| Reset button | Yes |
| Products per shipping (inner) case | 20 pc(s) |
| Warranty period | 1 year(s) |
| Processor | |
| Built-in processor | Yes |
| Indication | |
| LED indicators | System |
| Weight & dimensions | |
| Width | 232 mm |
| Depth | 232 mm |
| Weight | 489.6 g |
| Height | 57.1 mm |
| Package width | 283 mm |
| Package depth | 238 mm |
| Package height | 68 mm |
| Package weight | 850.9 g |
| Packaging data | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| PoE adapter included | No |
| Package width | 283 mm |
| Package depth | 238 mm |
| Package height | 68 mm |
| Package weight | 850.9 g |
| Bundled software | Cudy Software |
| AC adapter included | No |
| Packaging content | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| PoE adapter included | No |
| Bundled software | Cudy Software |
| AC adapter included | No |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| System requirements | |
| Compatible operating systems | Microso Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
| Logistics data | |
| Country of origin | China |
| Warranty period | 1 year(s) |
