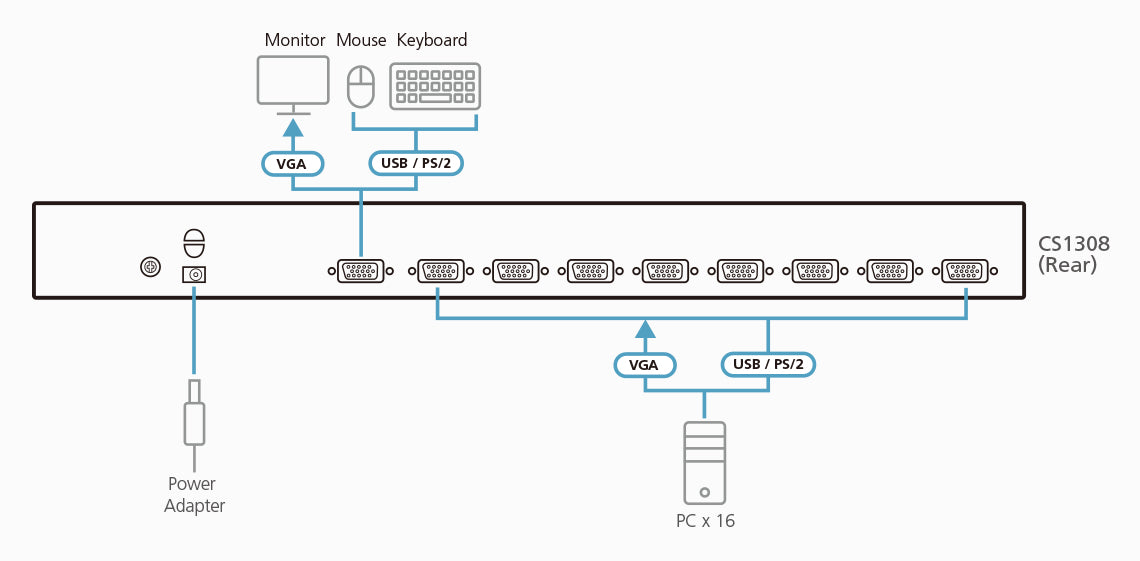

The CS1308 KVM switch allows access and control up to 64 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 64 computers that can be controlled from a single KVM console. The switch supports both USB and PS/2 connections for the console and computers.
Ports & interfaces
Number of computers controlled
8
Keyboard port type
No
Mouse port type
No
Video port type
VGA
VGA (D-Sub) ports quantity
9
DC-in jack
Yes
Network
Ethernet LAN
No
Performance
Maximum resolution
2048 x 1536 pixels
Scan interval
255 s
Technical details
Product colour
Black
Rack mounting
Yes
Scan interval
255 s
LED indicators
Power
Compliance certificates
RoHS
Design
Product colour
Black
Rack mounting
Yes
LED indicators
Power
Rack capacity
1U
Housing material
Metal
Display
Built-in display
No
Power
Power consumption (typical)
5 W
Video
Maximum resolution
2048 x 1536 pixels
Sustainability
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
433 mm
Depth
160 mm
Height
44 mm
Weight
1.89 kg
Packaging content
Manual
Yes
Other features
Connectivity technology
Wired
Power requirements
DC 5.3 V
Compatible operating systems
Windows 2000/XP/Vista, Linux, Mac, Sun
I/O ports
1 x RJ11
Logistics data
Harmonized System (HS) code
85176200
