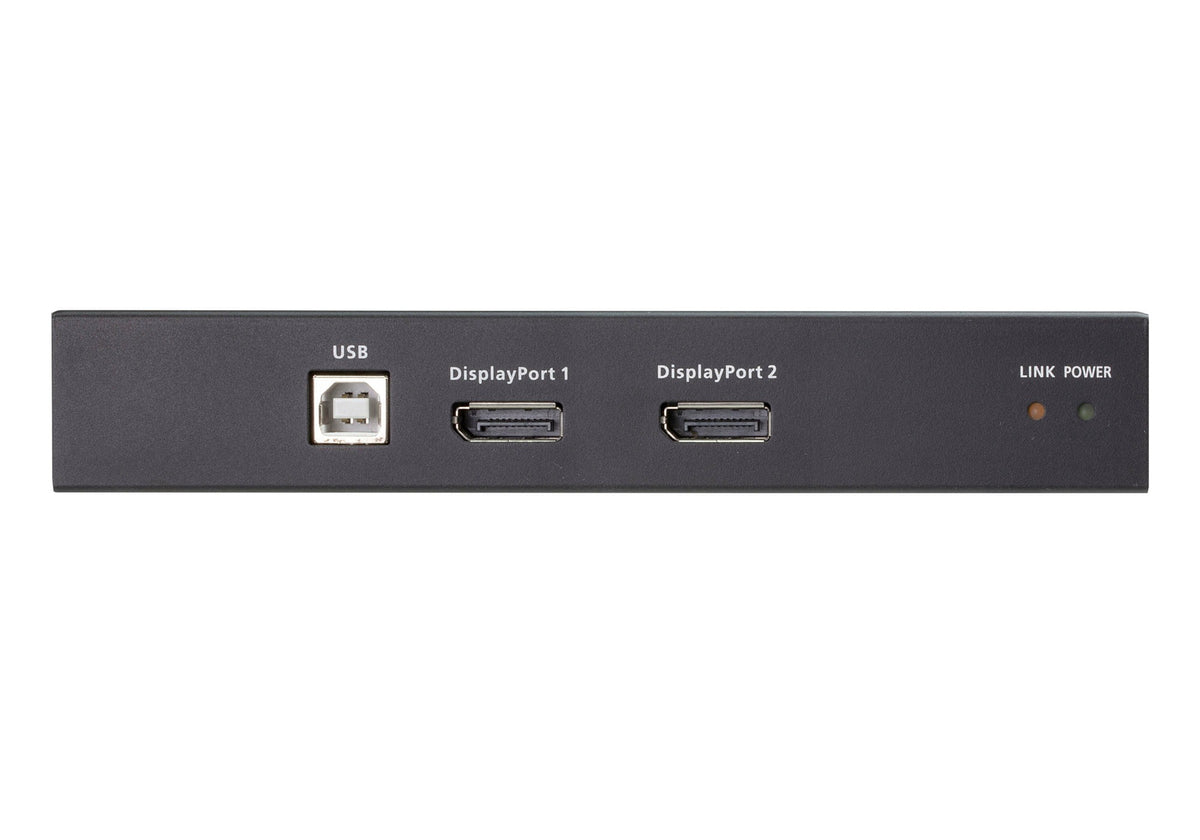

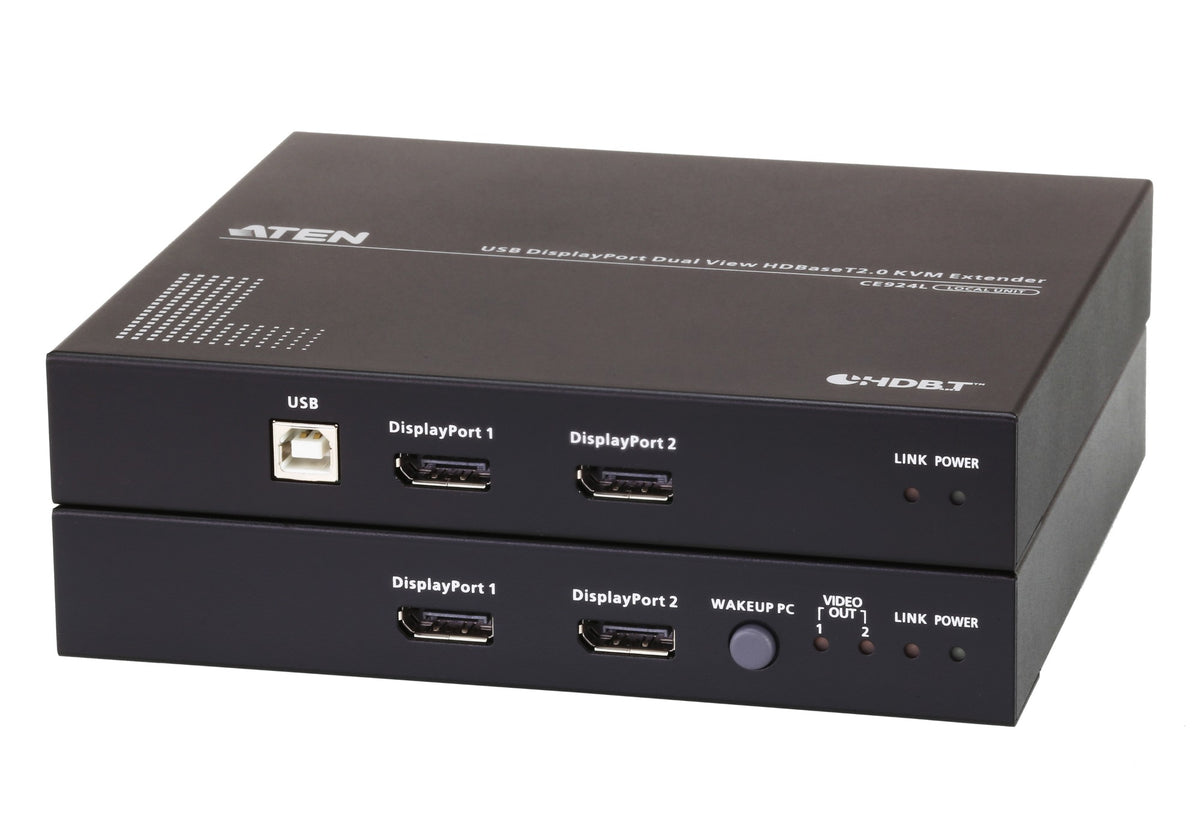

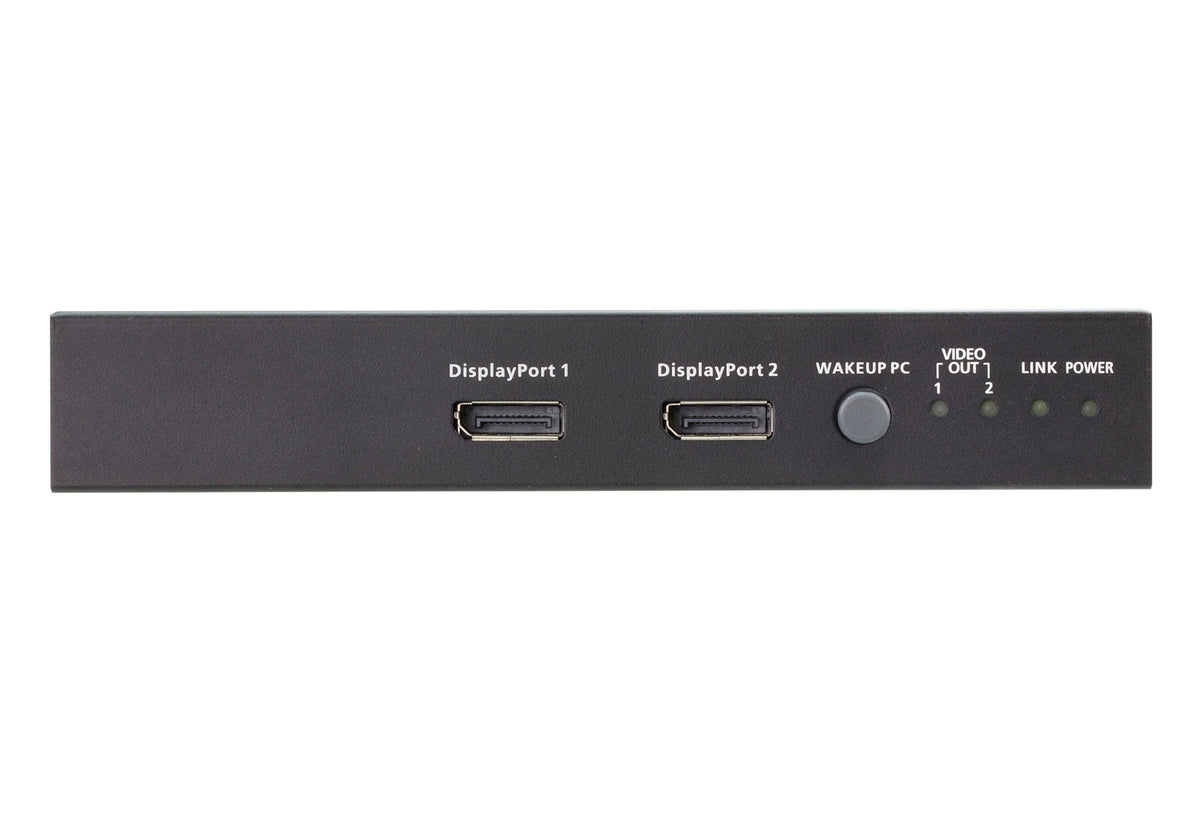

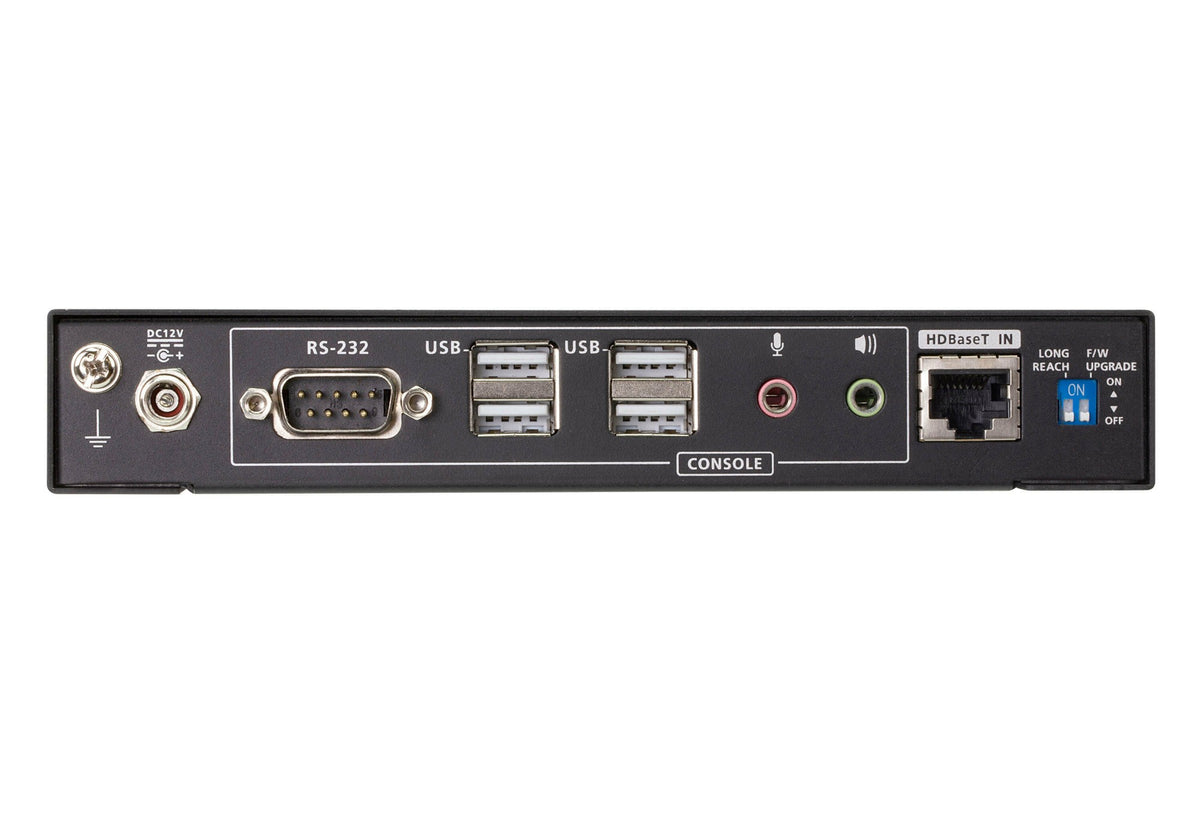

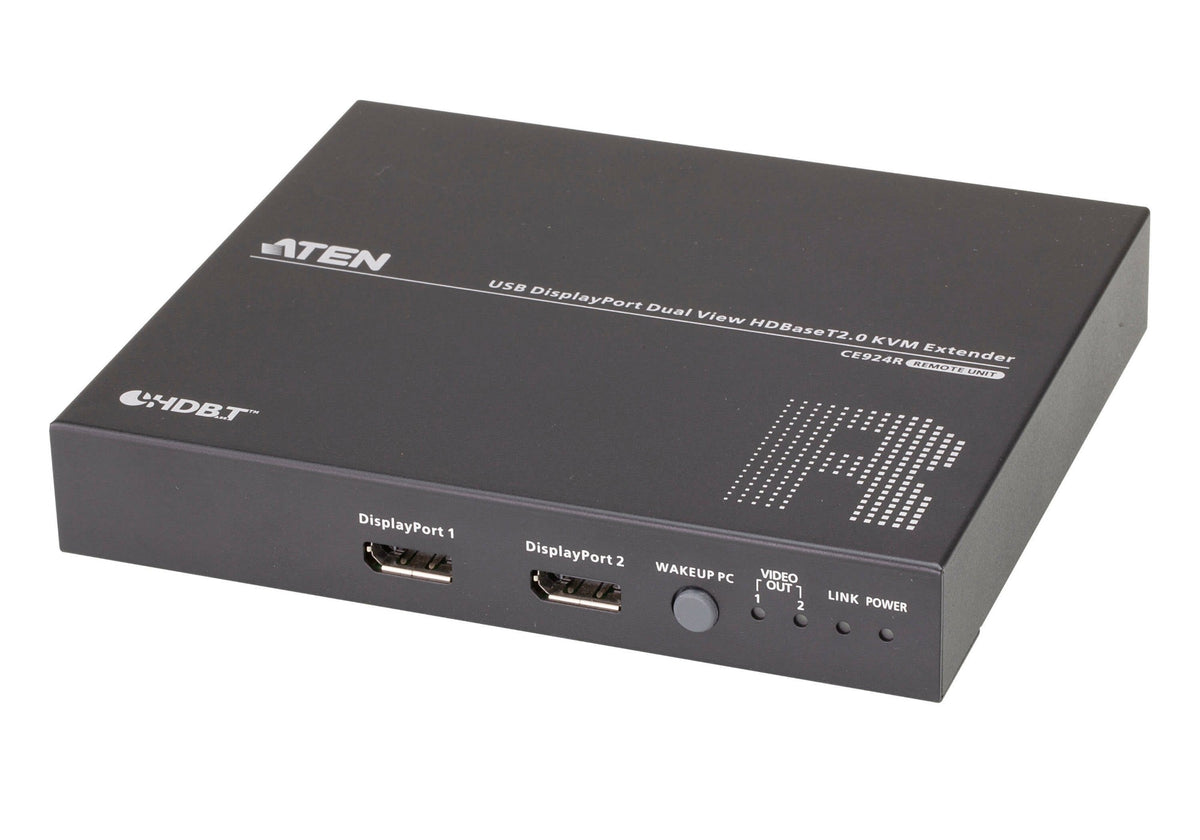

ATEN CE924 KVM extender Transmitter & receiver

The ATEN CE924 USB DisplayPort Dual View HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K video, stereo audio, USB, and RS-232 signals. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as it provides long-reach capability that extends Full HD 1080P signals up to 150 meters. In addition, CE924 supports single 4K display or dual 1080p display for DisplayPort video output resolution up to 100m by using a single Cat6 / 2L-2910 Cat 6 cable.

With an easy cable installation supporting various signals, the CE924 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.

Features
Type	Transmitter & receiver
Connectivity technology	Wired
Maximum digital resolution	4096 x 2160 pixels
Material	Metal
LED indicators	Yes
Transmitter
Transmitter video port type	DisplayPort
RJ-45 ports quantity (transmitter)	1
Receiver
Receiver local video port type	DisplayPort
RJ-45 ports quantity (receiver)	1
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Weight & dimensions
Transmitter width	15.4 cm
Transmitter depth	17.4 cm
Transmitter height	2.88 cm
Transmitter weight	820 g
Receiver width	15.6 cm
Receiver depth	17.4 cm
Receiver height	2.88 cm
Receiver weight	850 g
Ports & interfaces
USB port type	USB Type-A
Packaging data
AC adapter included	Yes
Cables included	DisplayPort, USB Type-A to USB Type-B
Manual	Yes
Packaging content
AC adapter included	Yes
Cables included	DisplayPort, USB Type-A to USB Type-B
Manual	Yes
