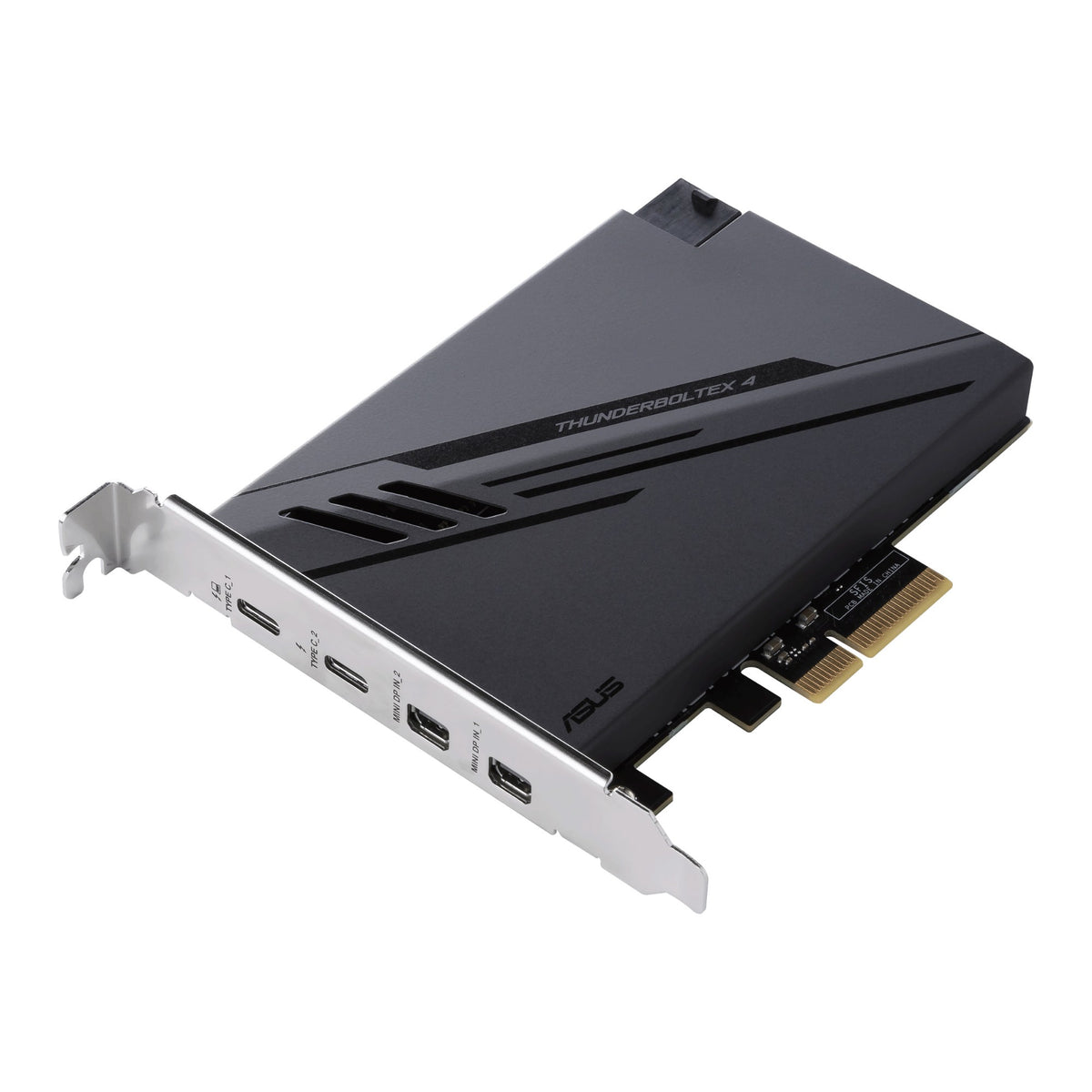

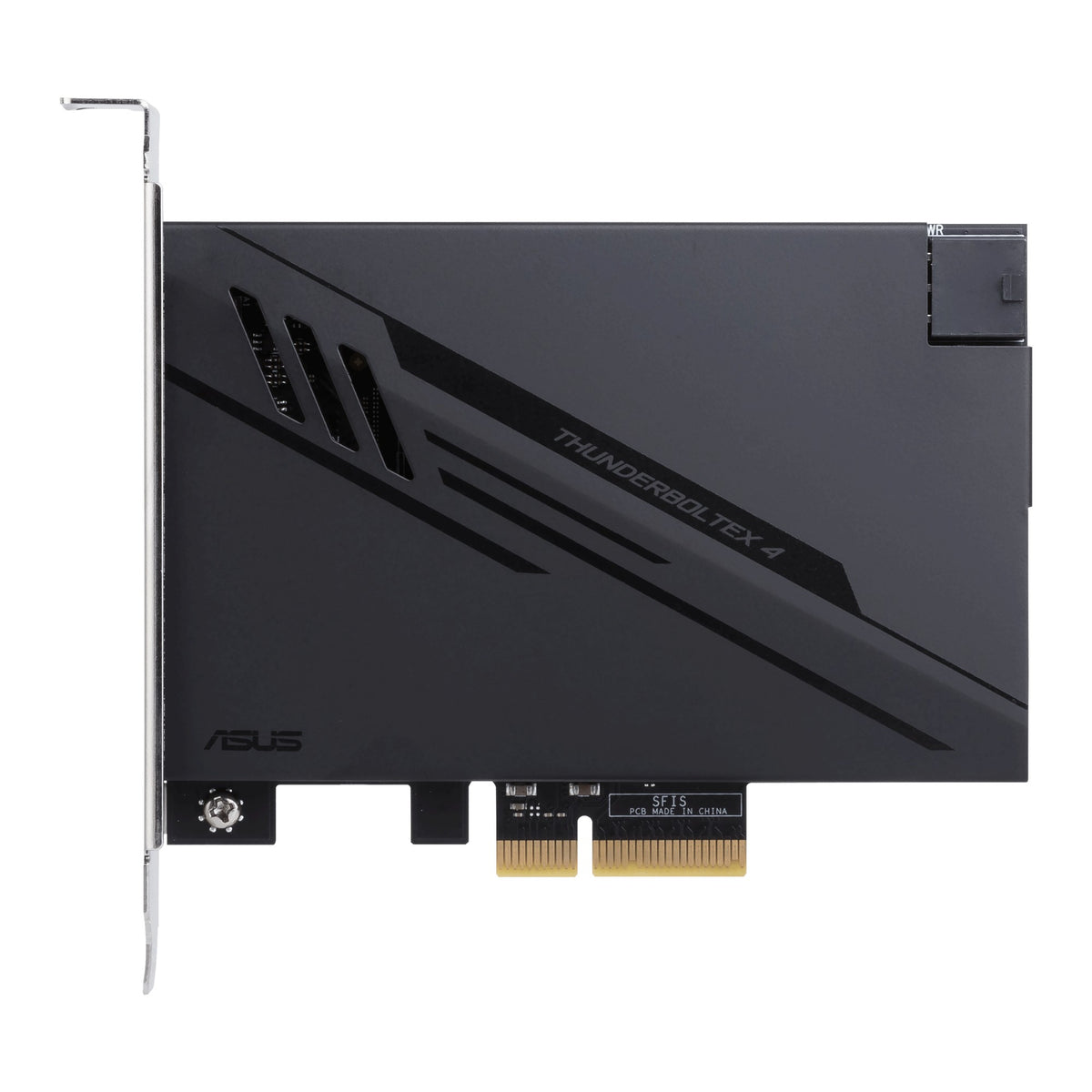

ASUS ThunderboltEX 4 interface cards/adapter Internal Mini DisplayPort, PCIe, Thunderbolt, USB 2.0, USB 3.2 Gen 2 (3.1 Gen 2)

Enable blisteringly fast speeds and any-way-up connectivity
ASUS ThunderboltEX 4 is a Thunderbolt™ 4 add-on card that offers 40 Gbps bi-directional bandwidth, USB4™ device compatibility, and DisplayPort™ 1.4. It supports up to five Thunderbolt devices in a daisy chain and enables up to 100-watt USB-C® charging for laptops.

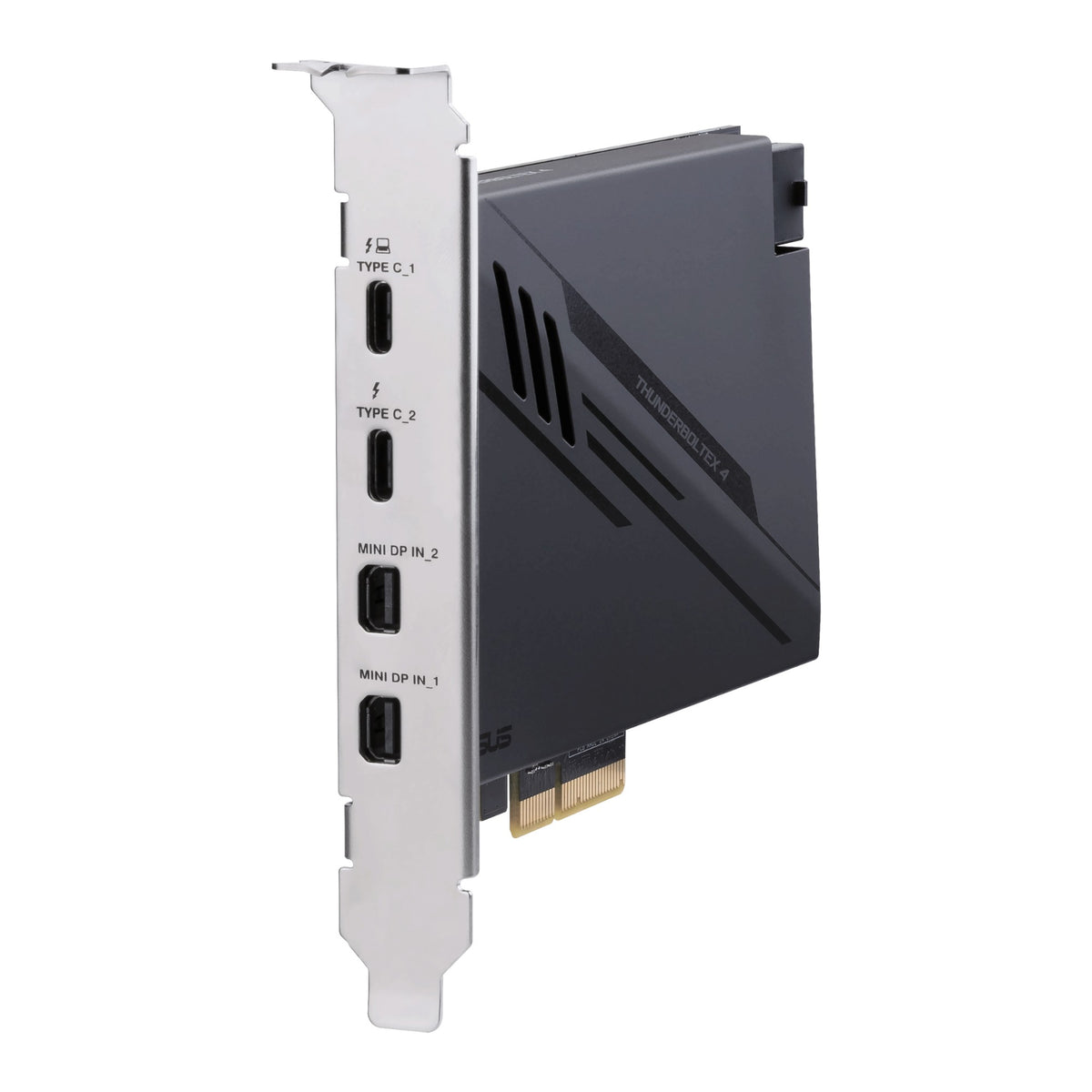

Ports & interfaces
Internal	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Output interface	Mini DisplayPort, PCIe, Thunderbolt, USB 2.0, USB 3.2 Gen 2 (3.1 Gen 2)
USB 2.0 ports quantity	1
Host interface	PCIe
Expansion card standard	PCIe 3.0
Technical details
Plug and Play	Yes
Chipset	Intel Thunderbolt 4 JHL8540
Purpose	PC
Data transfer rate (max)	40 Gbit/s
Compatibility	ASUS Intel 500
Performance
Plug and Play	Yes
Chipset	Intel Thunderbolt 4 JHL8540
Purpose	PC
Data transfer rate (max)	40 Gbit/s
Product colour	Black
Harmonized System (HS) code	84733020
Colour
Product colour	Black
Design
Purpose	PC
Internal	Yes
Product colour	Black
Features
Plug and Play	Yes
Chipset	Intel Thunderbolt 4 JHL8540
Data transfer rate (max)	40 Gbit/s
Harmonized System (HS) code	84733020
System requirements
Windows operating systems supported	Windows 10 x64
Weight & dimensions
Width	117.7 mm
Depth	180.5 mm
Packaging data
Manual	Yes
Drivers included	Yes
Package type	Box

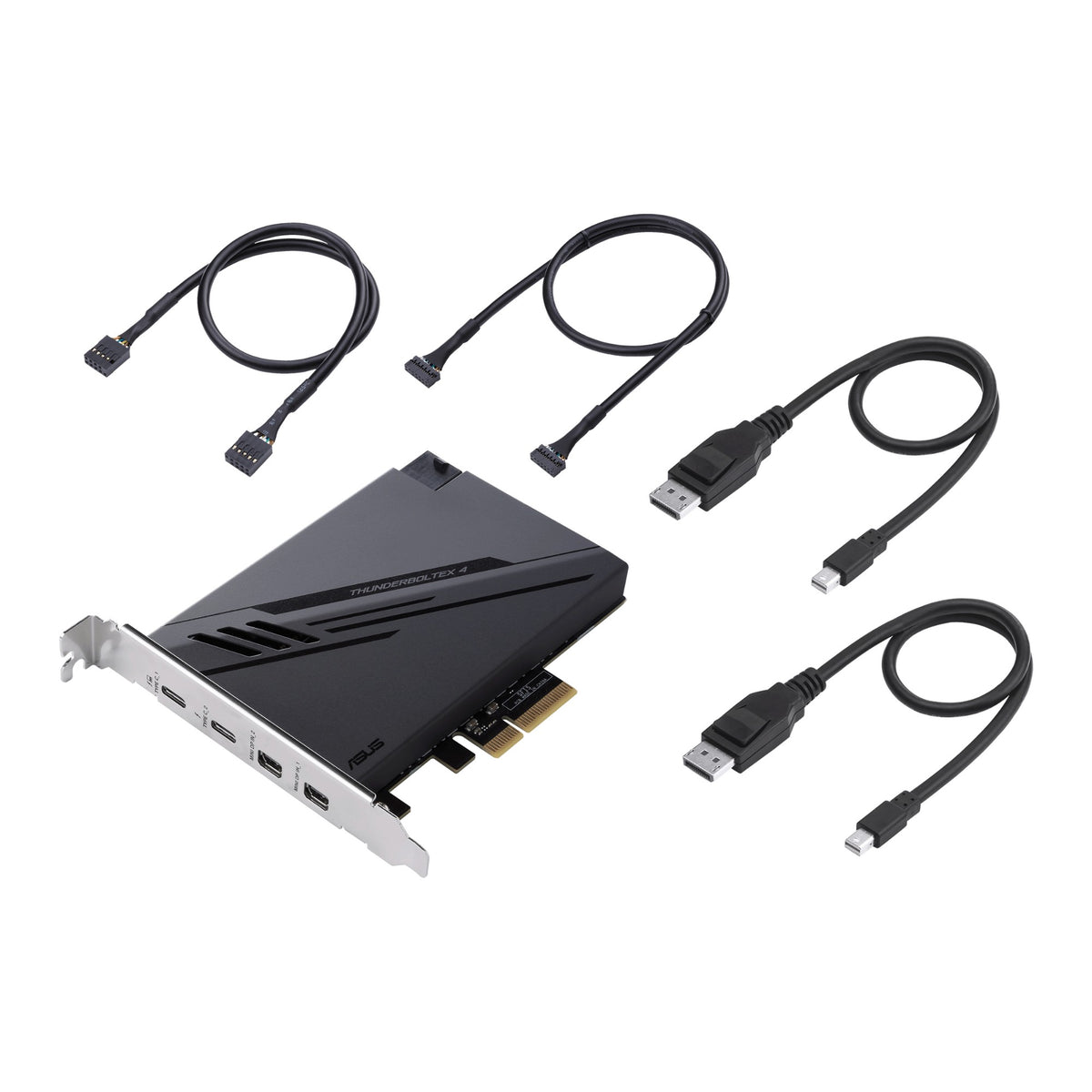

Cables included	Mini DisplayPort, Thunderbolt, USB
Quantity	1
Logistics data
Harmonized System (HS) code	84733020
Other features
Compatibility	ASUS Intel 500
Maximum resolution	7680 x 4320 pixels
Chipset	Intel Thunderbolt 4 JHL8540

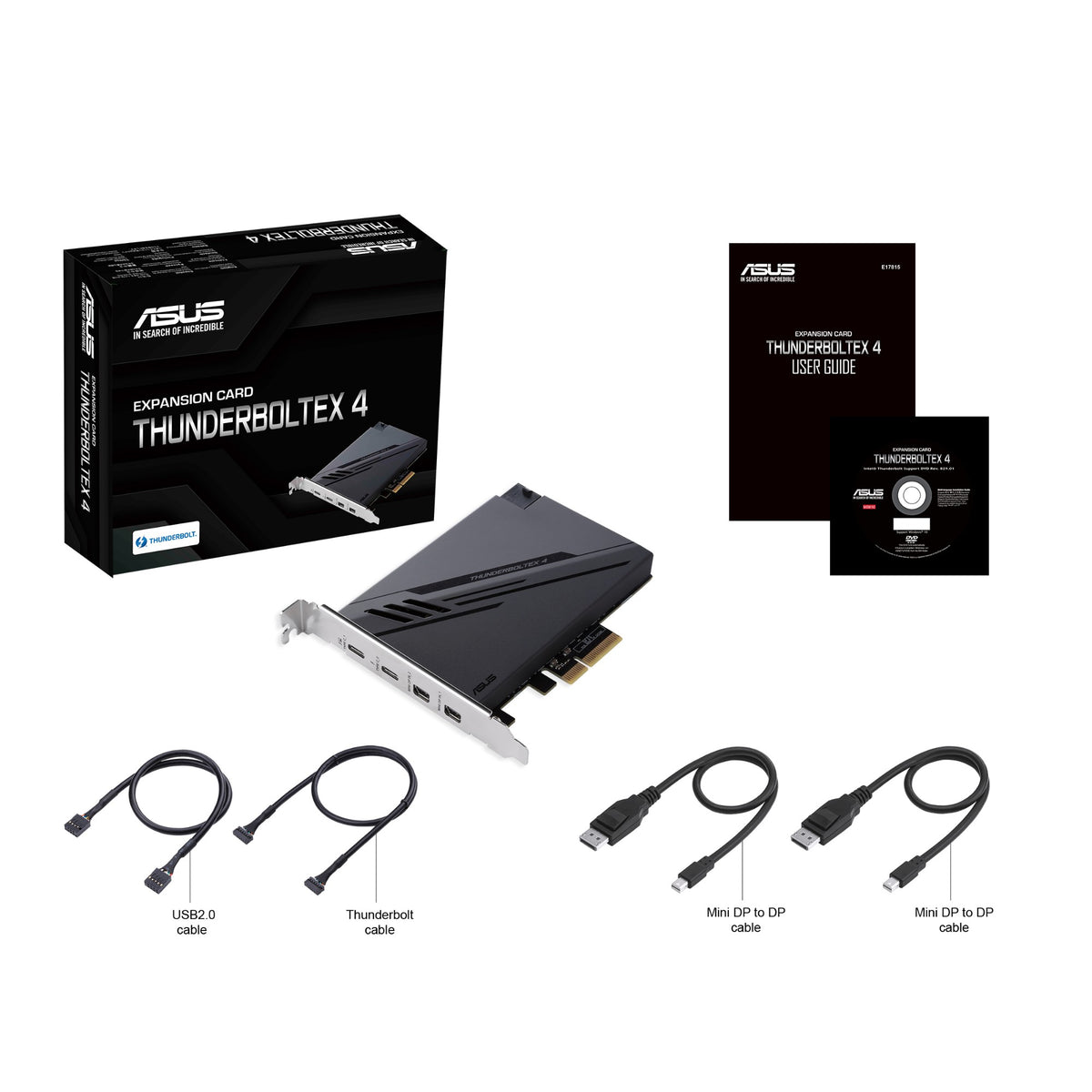

Packaging content
Manual	Yes
Drivers included	Yes
Package type	Box
Cables included	Mini DisplayPort, Thunderbolt, USB
Quantity	1
