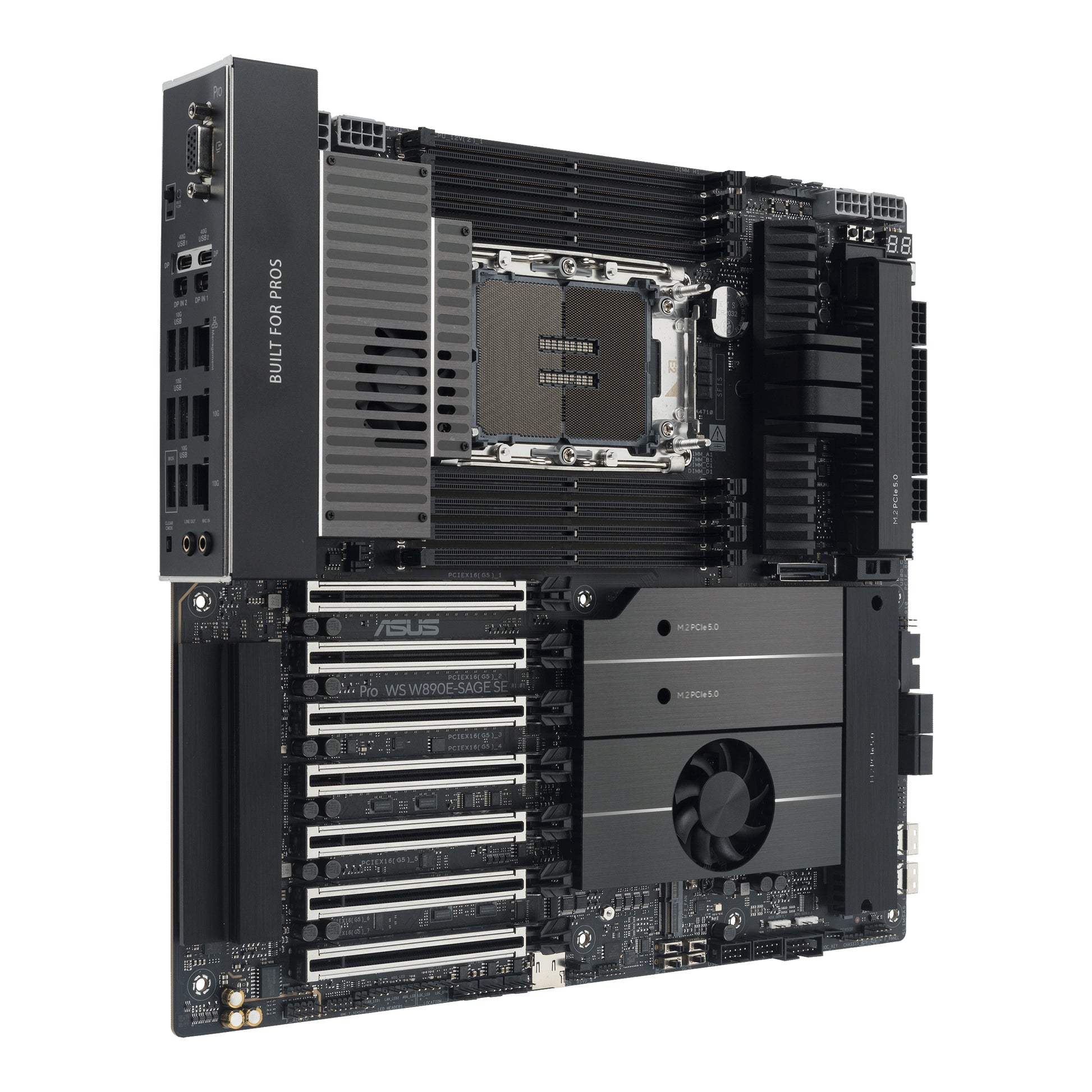

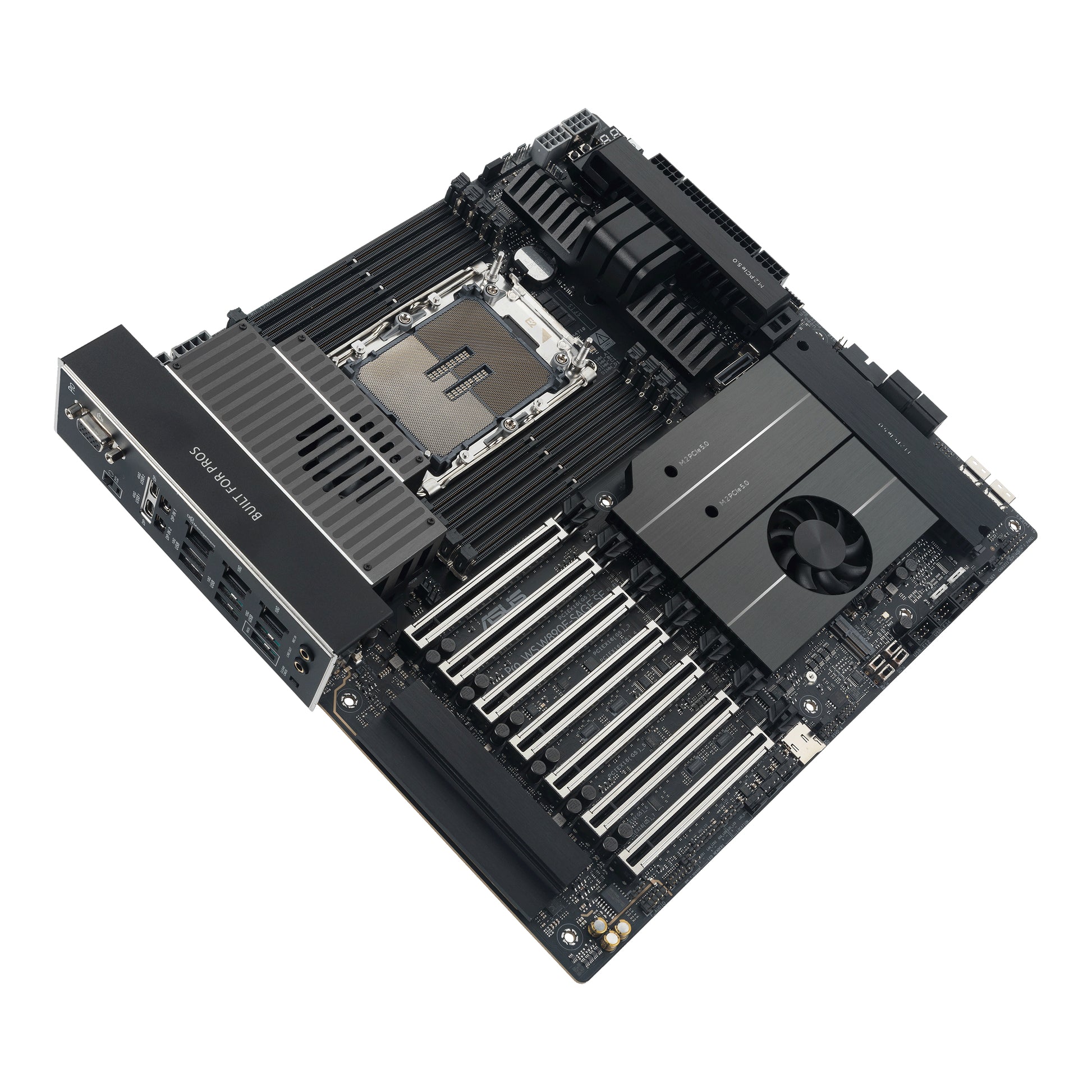

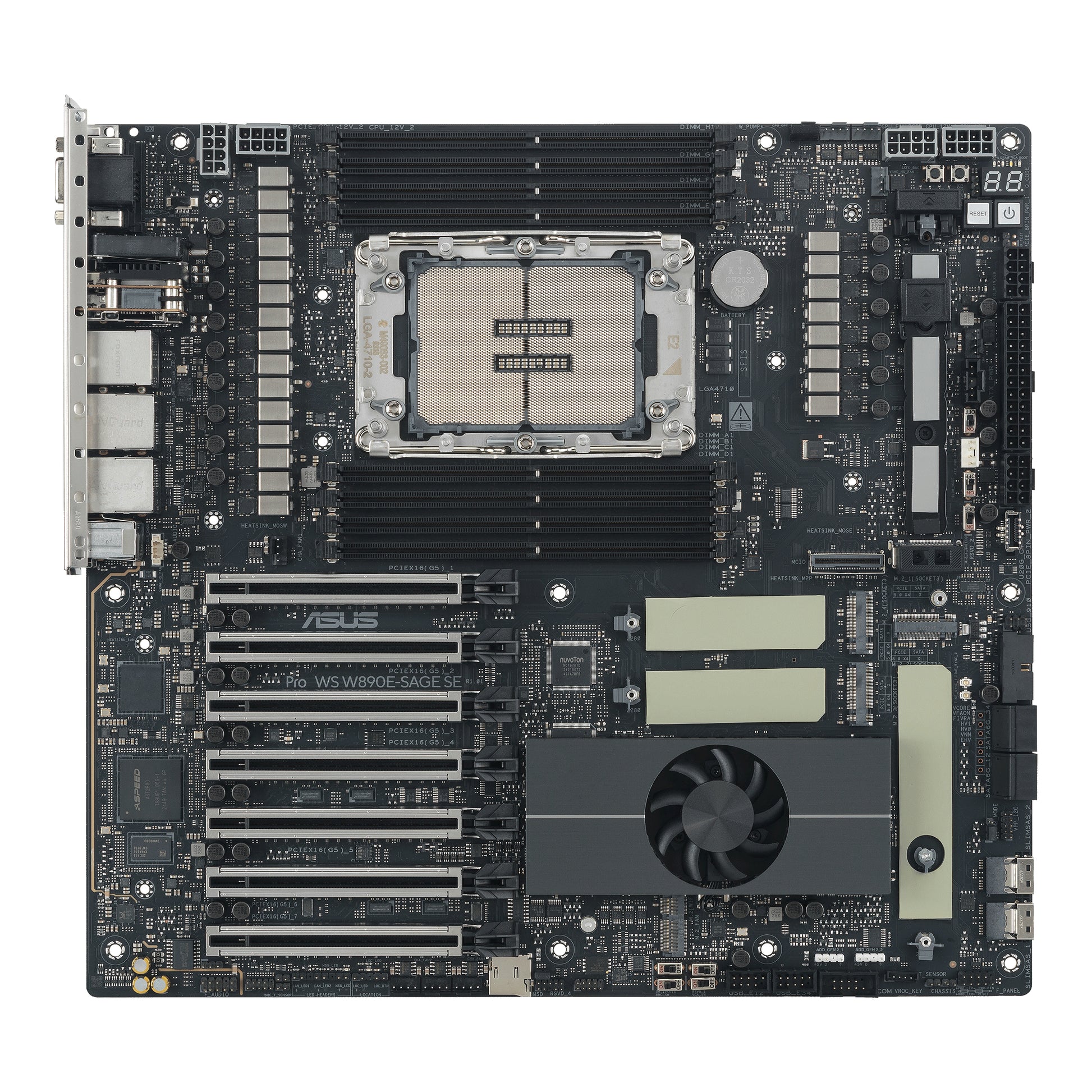

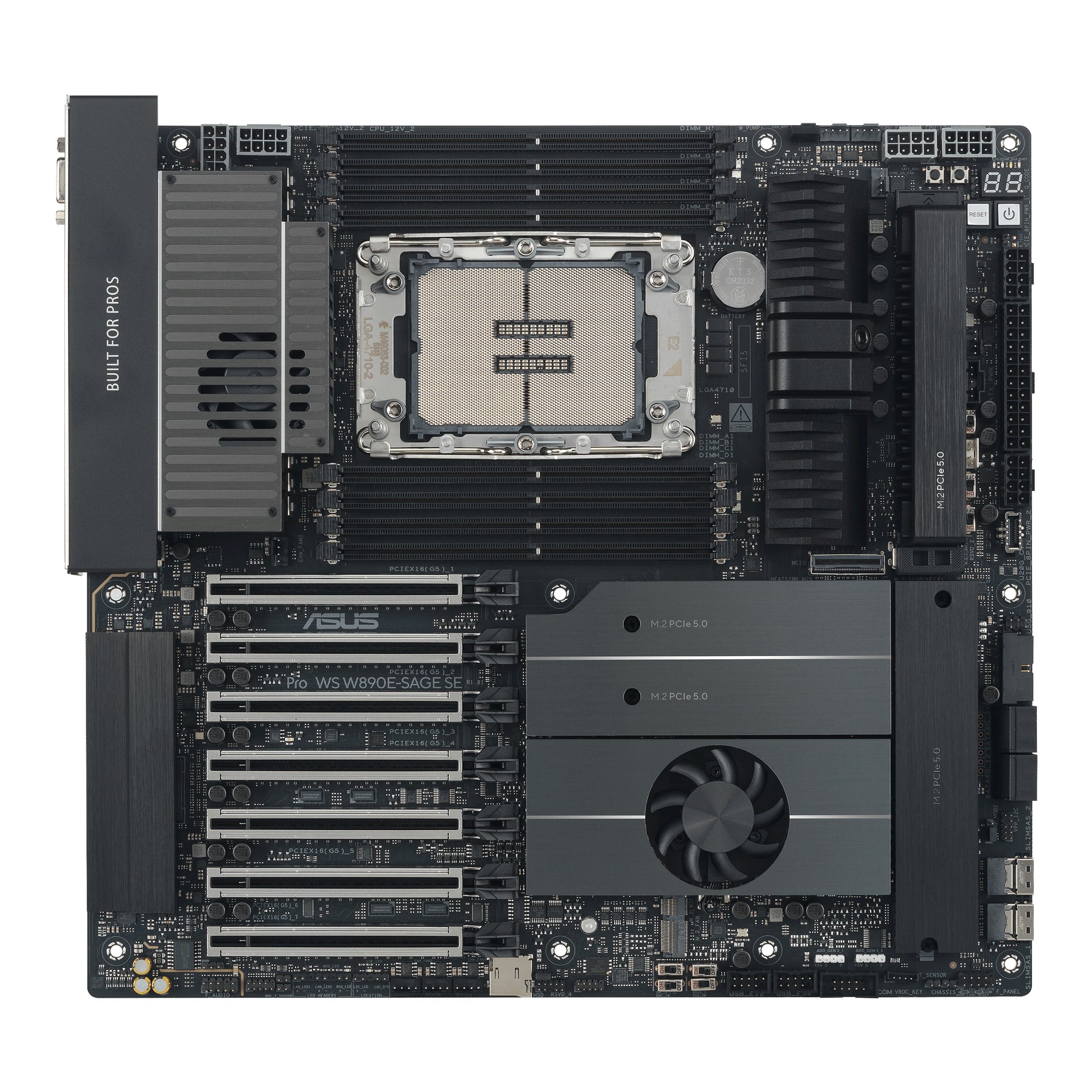

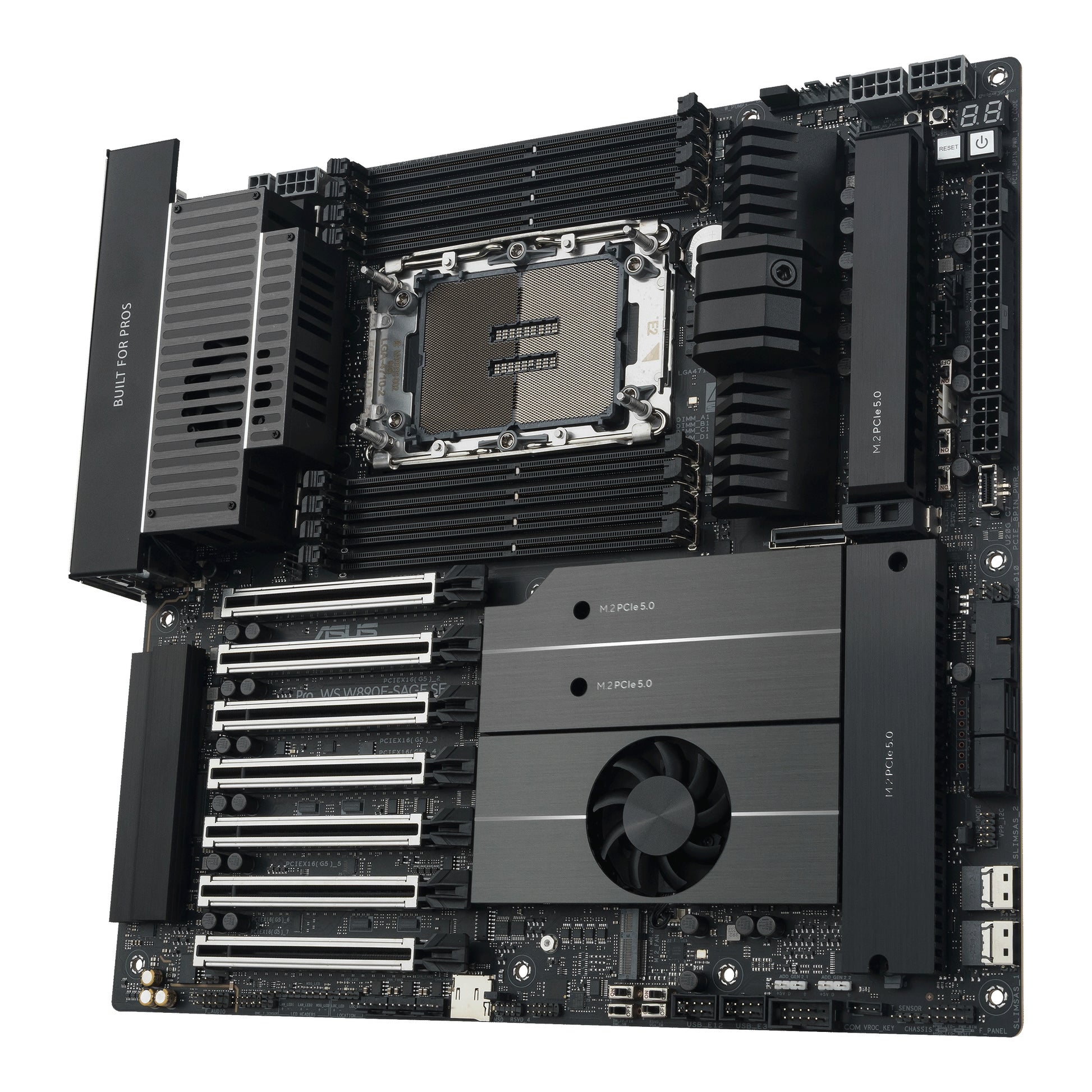

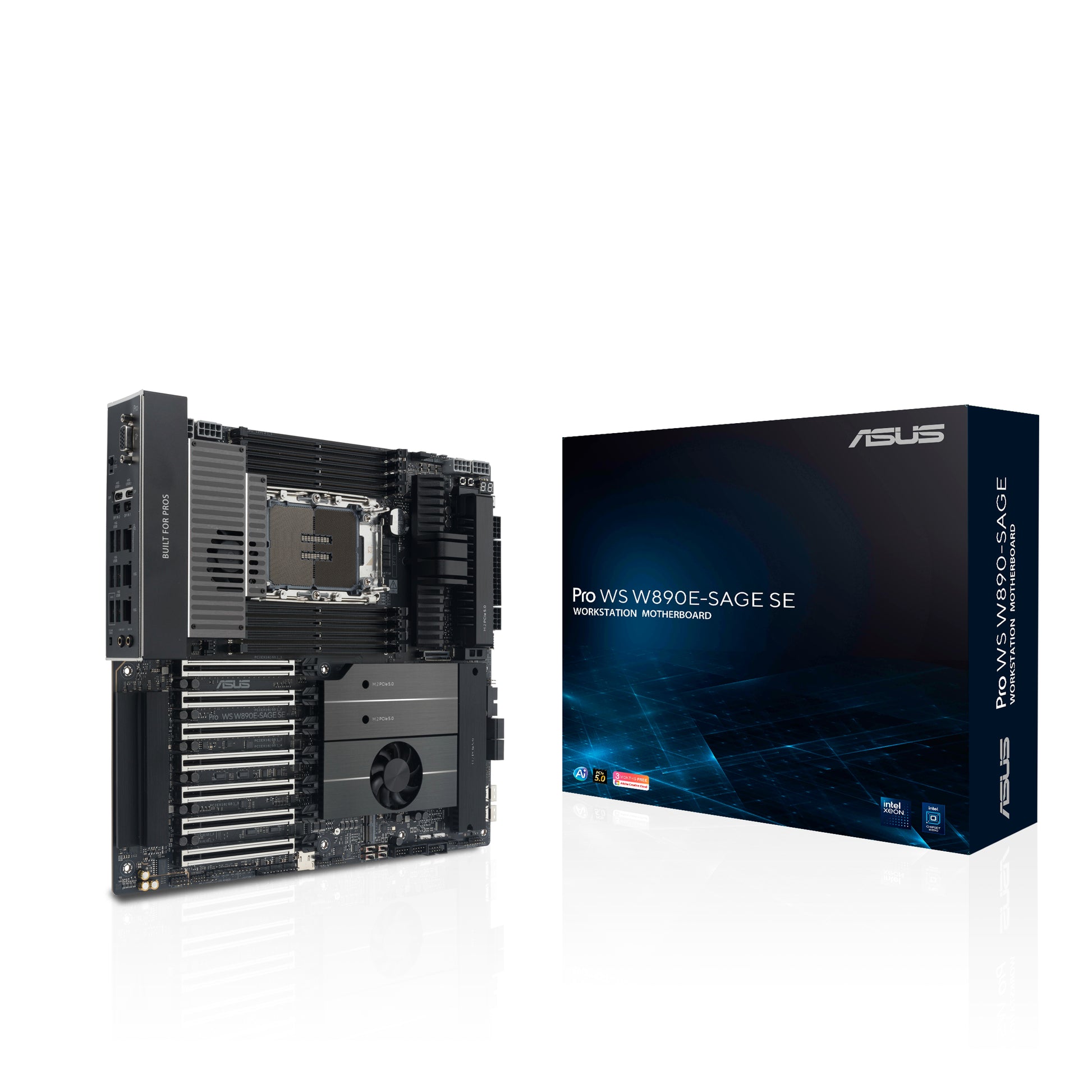

The ASUS Pro WS W890E-SAGE SE is a professional EEB workstation motherboard built around the Intel W890 chipset and LGA 4710-2 socket for Xeon processors. With extensive DDR5 memory support, abundant PCIe expansion and server-grade features, it is engineered for demanding workstation builds.
ASUS Pro WS W890E-SAGE SE. Processor manufacturer: Intel, Processor socket: LGA 4710-2, Compatible processor series: Intel® Xeon®. Supported memory types: DDR5-SDRAM, Memory slots type: DIMM, Memory channels: Octa-channel. Supported storage drive interfaces: M.2, SATA III, SlimSAS, Supported storage drive types: HDD & SSD, RAID levels: 0, 5, 1, 10. Maximum resolution: 7680 x 4320 pixels. Ethernet interface type: 10 Gigabit Ethernet, Gigabit Ethernet
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 4710-2 |
| Compatible processor series | Intel® Xeon® |
| Supported processor sockets | LGA 4710-2 |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Octa-channel |
| ECC сompatibility | ECC |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III, SlimSAS |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 10 |
| RAID support | Yes |
| RAID levels | 0, 5, 1, 10 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 7680 x 4320 pixels |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 5 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 5 |
| Number of COM connectors | 1 |
| 12V power connector | Yes |
| Integrated SAS ports | 2 |
| Number of water pump connectors | 1 |
| Number of temperature sensor headers | 1 |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 2 |

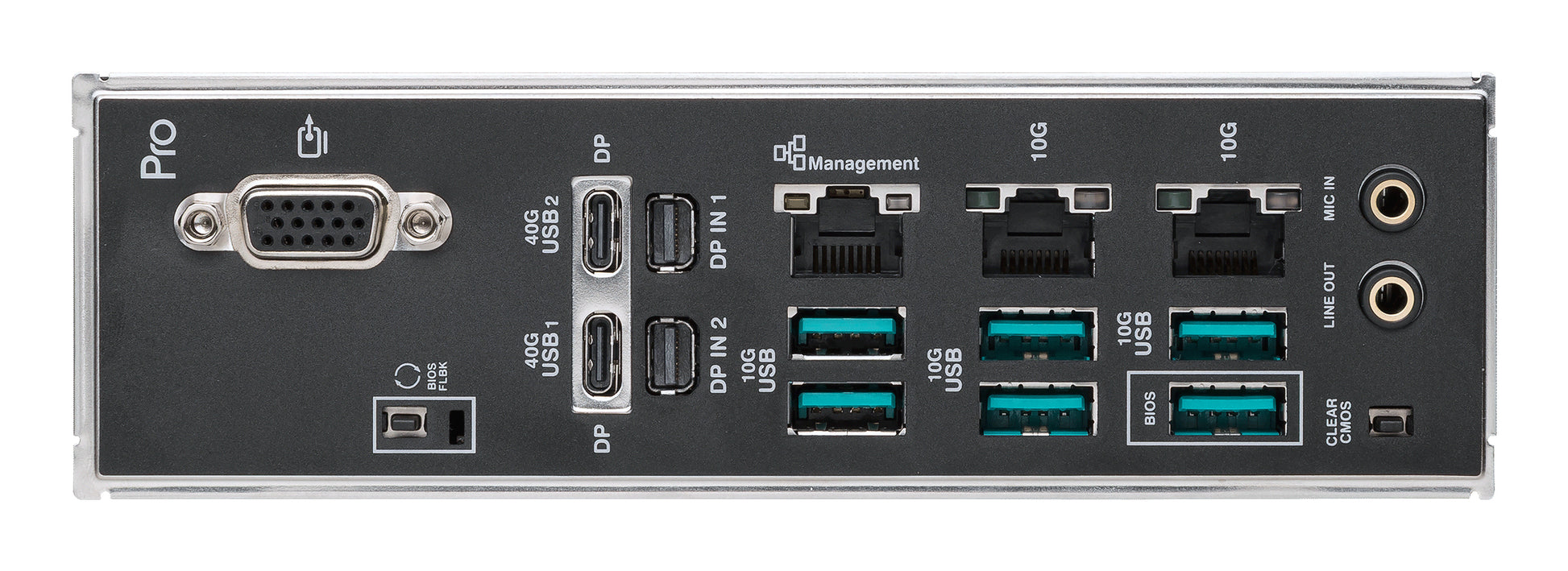

| Rear panel I/O ports | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB4 Gen 3x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 3 |
| IPMI LAN (RJ-45) port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Wi-Fi | No |
| Features | |
| Motherboard chipset | Intel W890 |
| Audio chip | Realtek ALC1220P |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | Workstation |
| Motherboard form factor | EEB |
| Motherboard chipset family | Intel |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 11 |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 7 |
| Number of M.2 (M) slots | 4 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 5.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 5.0 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 512 Mbit |
| Clear CMOS button | Yes |
| BIOS flashback button | Yes |
| Packaging data | |
| Package width | 362 mm |
| Package depth | 377 mm |
| Package height | 103 mm |
| Package weight | 3.7 kg |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 330 mm |
| Height | 50 mm |

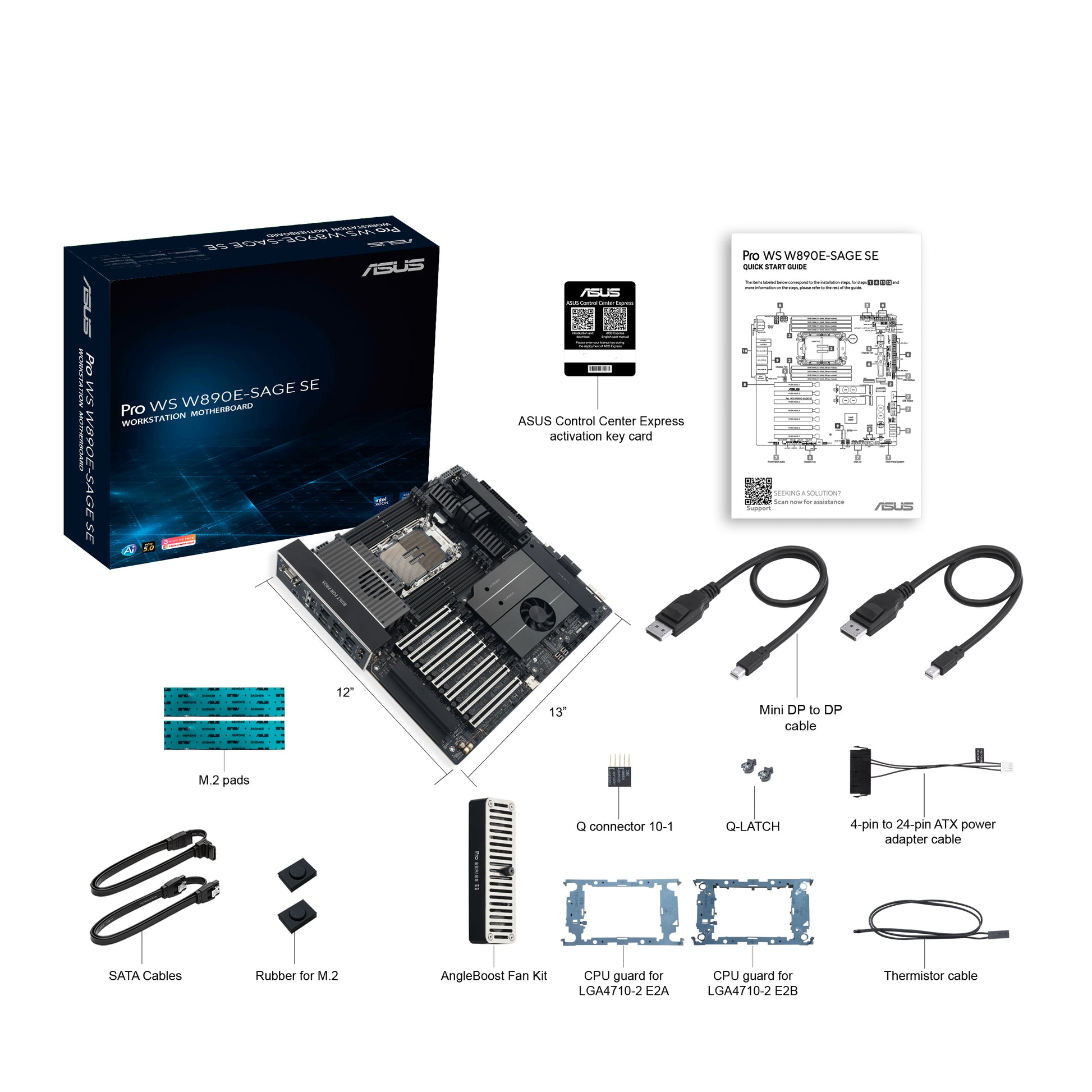

| Packaging content | |
| Cables included | SATA, DisplayPort |
| Screws included | Yes |
| Other features | |
| Mini DisplayPorts quantity | 2 |
| Weight | 3.4 kg |
| Number of M.2 (E) slots | 1 |
