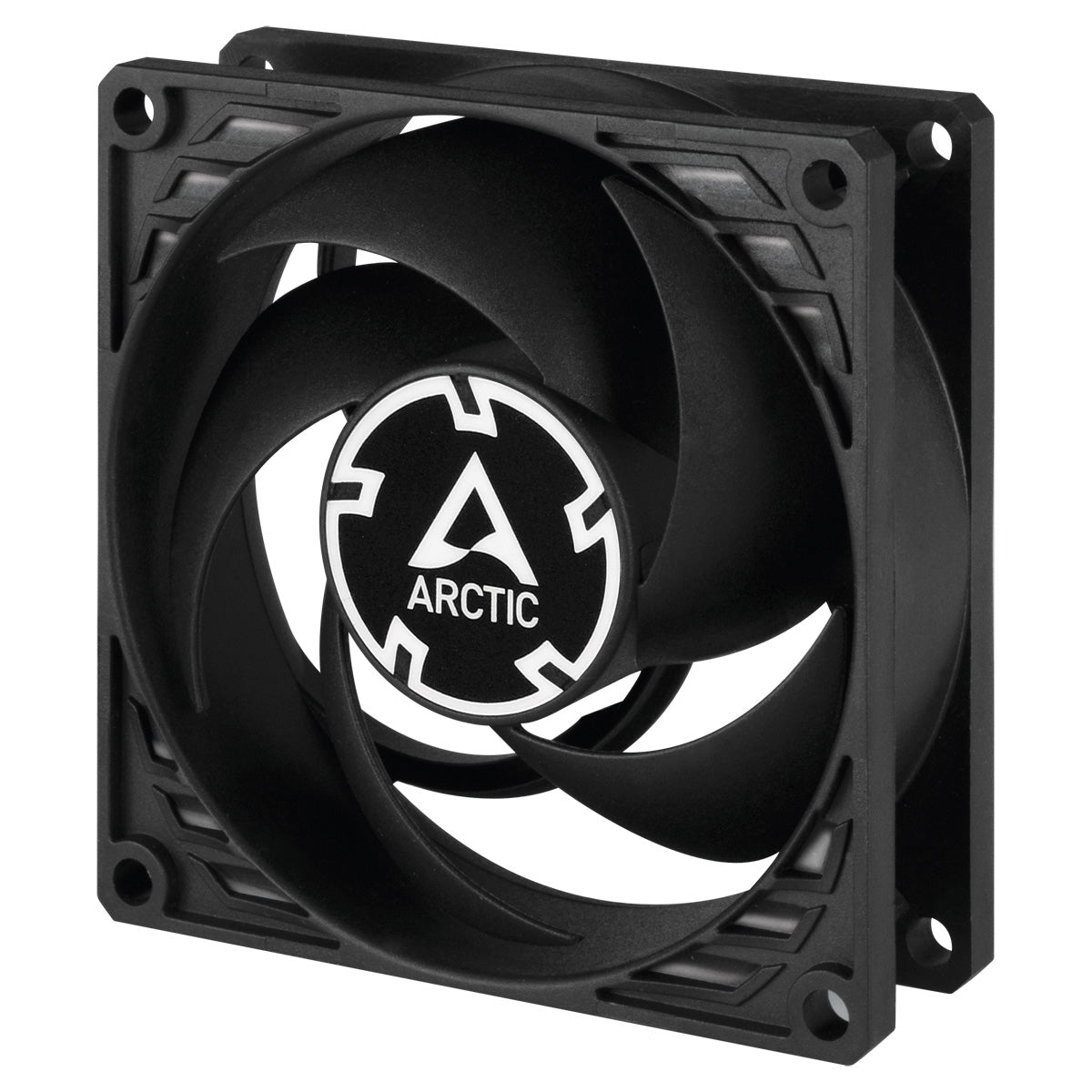

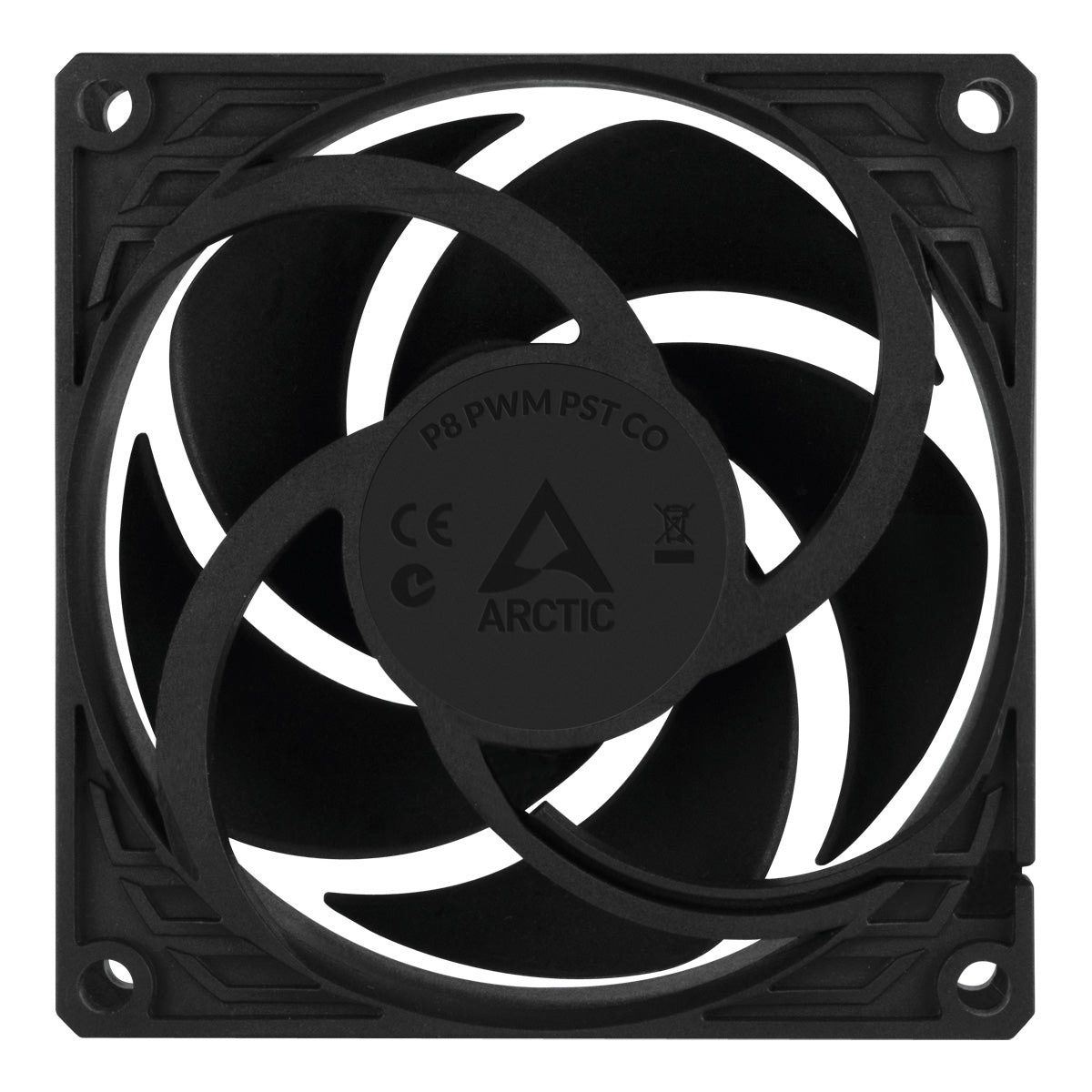

ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation

Not only that we at ARCTIC free the IT world from noise – we care for the right sound as well!

As an international company, our expertise extends over noise reduction in PCs to consumer electronics products.

Performance
Suitable location	Computer case
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Rotational speed (min)	200 RPM
Rotational speed (max)	3000 RPM
Noise level	0.3 sone
Bearing type	Fluid Dynamic Bearing (FDB)
Type	Fan
Fan diameter	8 cm
Supported processor sockets	Not supported
Compatible processor series	Not supported
Maximum airflow	23.4 cfm
Maximum air pressure	1.9 mmH2O
Airflow	40.3 m³/h
Number of fans	1 fan(s)
Mounting hole pattern (W x D)	71.5 x 71.5 mm
Number of fan blades	5
Design
Fan connector	4-pin
Number of fans	1 fan(s)
Product colour	Black
Illumination LED	No
Number of fan blades	5
Display type	Not applicable
Technical details
Type	Fan
Fan diameter	8 cm
Supported processor sockets	Not supported
Compatible processor series	Not supported
Maximum airflow	23.4 cfm
Maximum air pressure	1.9 mmH2O
Airflow	40.3 m³/h
Number of fans	1 fan(s)
Fan connector	4-pin
Mounting hole pattern (W x D)	71.5 x 71.5 mm
Illumination LED	No
Ports & interfaces
Fan connector	4-pin
Power
Voltage	12 V
Rated current	0.09 A
Colour
Product colour	Black
Weight & dimensions
Package depth	26 mm
Package width	82.5 mm
Package height	82.5 mm
Width	80 mm
Package weight	97 g
Depth	25 mm
Height	80 mm
Weight	78.5 g
Packaging data
Package depth	26 mm
Package width	82.5 mm
Package height	82.5 mm
Package weight	97 g
Package type	Box
Packaging content
Screws included	Yes
Number of screws	4
Package type	Box
Manual	Yes
Other features
Mounting hole pattern (W x D)	71.5 x 71.5 mm
Country of origin	China
