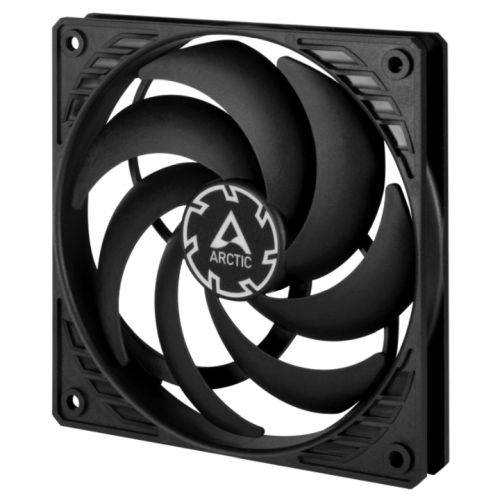

Arctic P12 Slim 12cm Pressure Optimised PWM PST Case Fan, Black, Fluid Dynamic, 300-2100 RPM

Arctic P12 Slim 12cm Pressure Optimised PWM PST Case Fan, Black, Fluid Dynamic, 300-2100 RPM

Regular price £14.06 GBP
Regular price Sale price £14.06 GBP
Sold out
Tax included.
  Pressure-optimised 120 mm PWM Fan with integrated Y-cable   Ideal Where Space Is Limited Unlike normal case fans, which are 25 mm thick, the P12 Slim PWM PST has...
16 people are viewing this right now

Availability112 in stock

SKU: ACFAN00187A
Vendor: ARCTIC
Category: Unknown Type
Tags:

Shipping & Returns

Free shipping on orders over £350

We ship all domestic and International orders within 6-8 business days

Materials

The item with the Committed label has a lower environmental impact because it was made with sustainable materials or methods. We are committed to creating items that combine sustainability with style. Made with recycled cashmere and industril by products.

Size Chart

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details



Pressure-optimised 120 mm PWM Fan with integrated Y-cable



Ideal Where Space Is Limited

Unlike normal case fans, which are 25 mm thick, the P12 Slim PWM PST has an installation depth of only 15 mm. This makes it a predestined fan for small form factor builds.





Optimised For Static Pressure

During the development of the new P12 Slim PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 Slim PWM PST is particularly suitable for use on covered case vents or inlets with filters.





More Efficient Technology

The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 Slim PWM PST to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.






Maximum Quietness, Minimum Vibration

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.




Extended Life Span

A 10°C lower motor temperature roughly doubles the life span of a fan.The new ARCTIC motor has a four times longer service life through its low coil temperature.Consequently, we have extended the warranty to 10 years.





300 To 2100 Rpm Regulated Via PWN PST

With a wide range of regulation and the PWM Sharing Technology (PST), the P12 Slim PWM PST fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.





High Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.





Two Way Installation

  • Push warm air out of the case
  • Pull cool air into your case


Description

Specification

  • Type: 12cm Case Fan
  • Fan Connector(s): 4-pin
  • Fan Controller: PWM
  • #Hide#LED Lighting: No
  • Colour: Black
  • LED Lighting: -
  • #Hide#White: N/A
  • Weight: 85g
  • Fan Dimensions: 120 x 120 x 15 mm
  • Rotation Speed: 300 - 2100 RPM
  • Fan Bearing: Fluid Dynamic Bearing
  • Air Flow: 42.1 CFM | 71.53 m3/h
  • Noise level: 0.3 Sone
  • Power: Typical Voltage: 12 V DC
    Current: 0.12 A
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 0.1200 kg
  • Warranty: 6 Years
