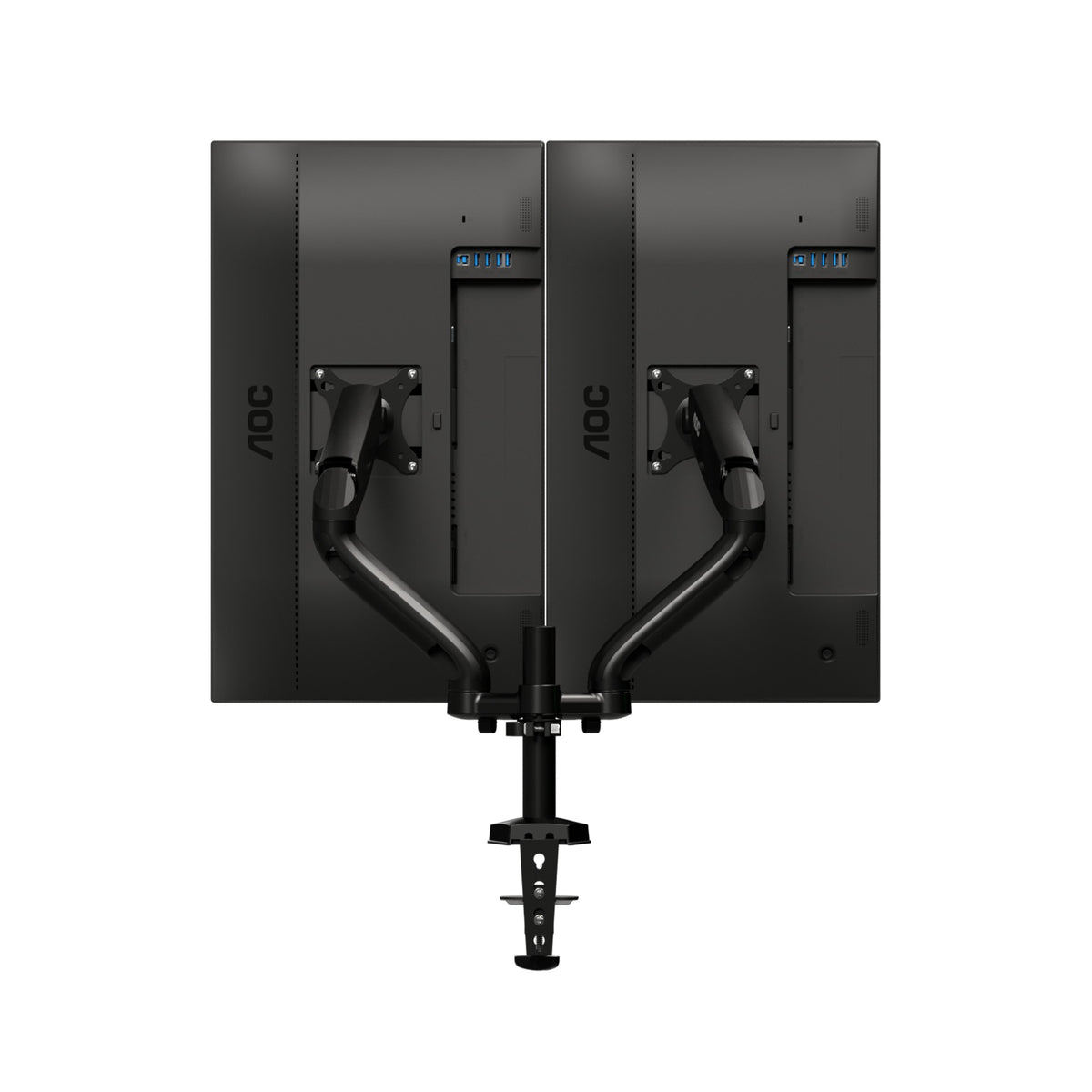

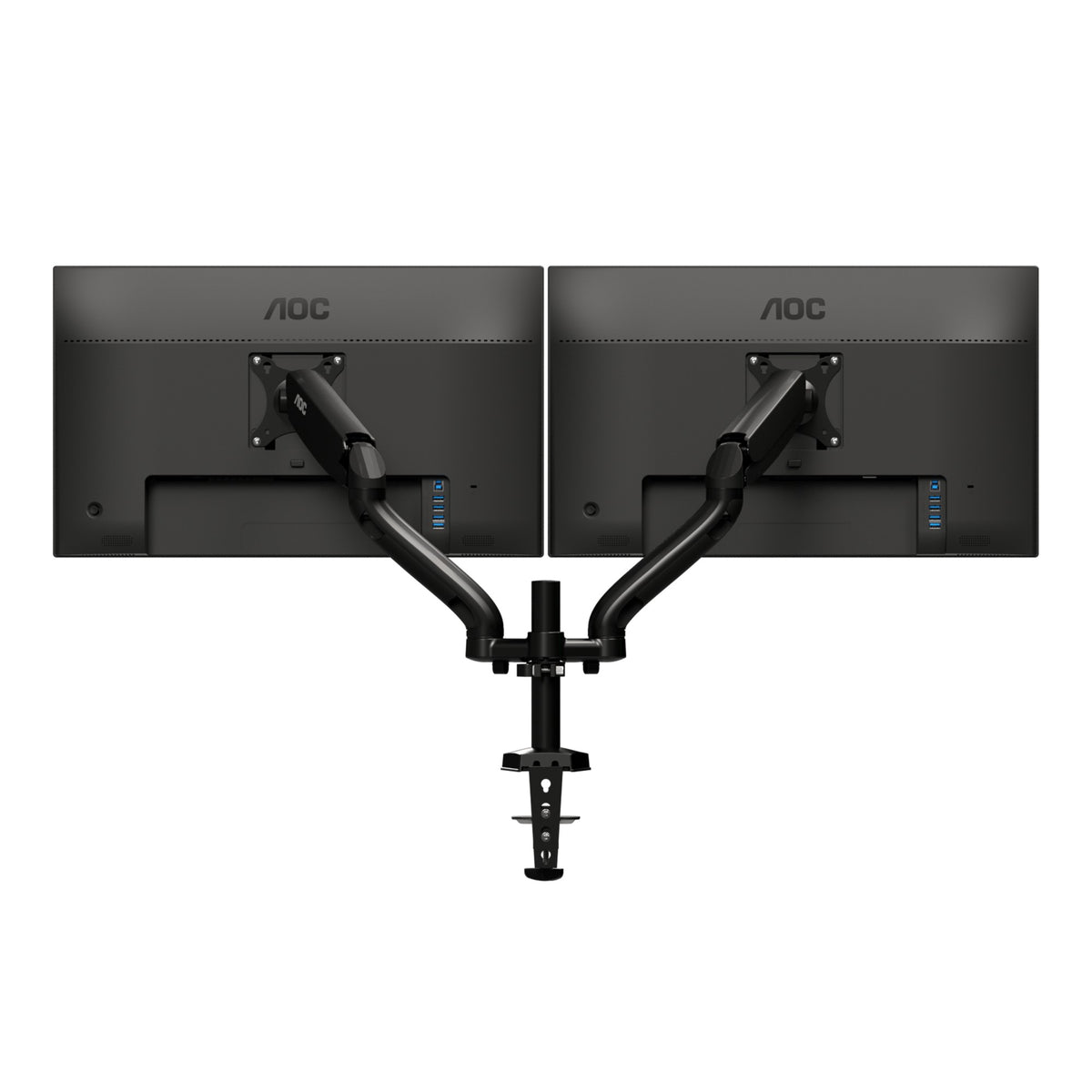

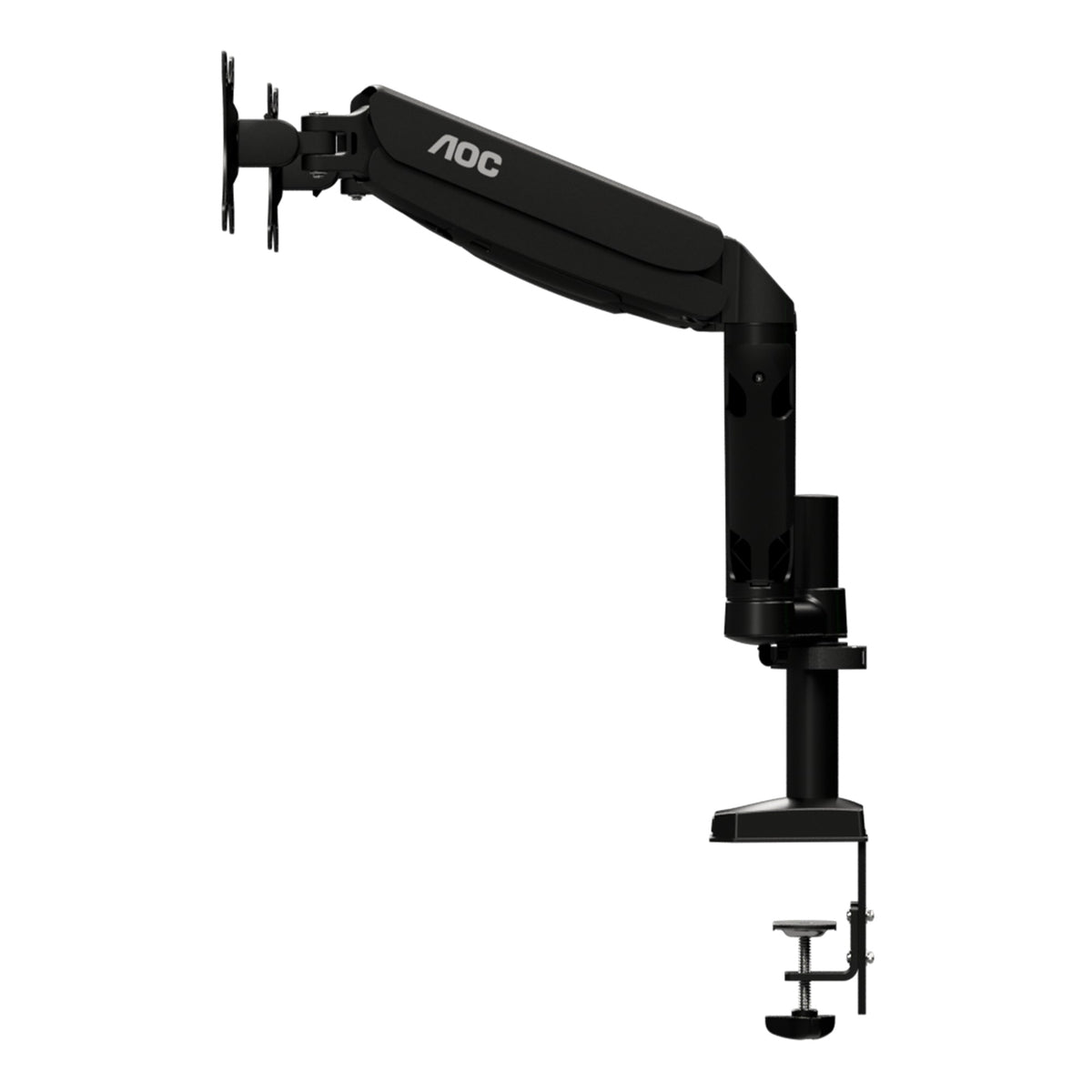

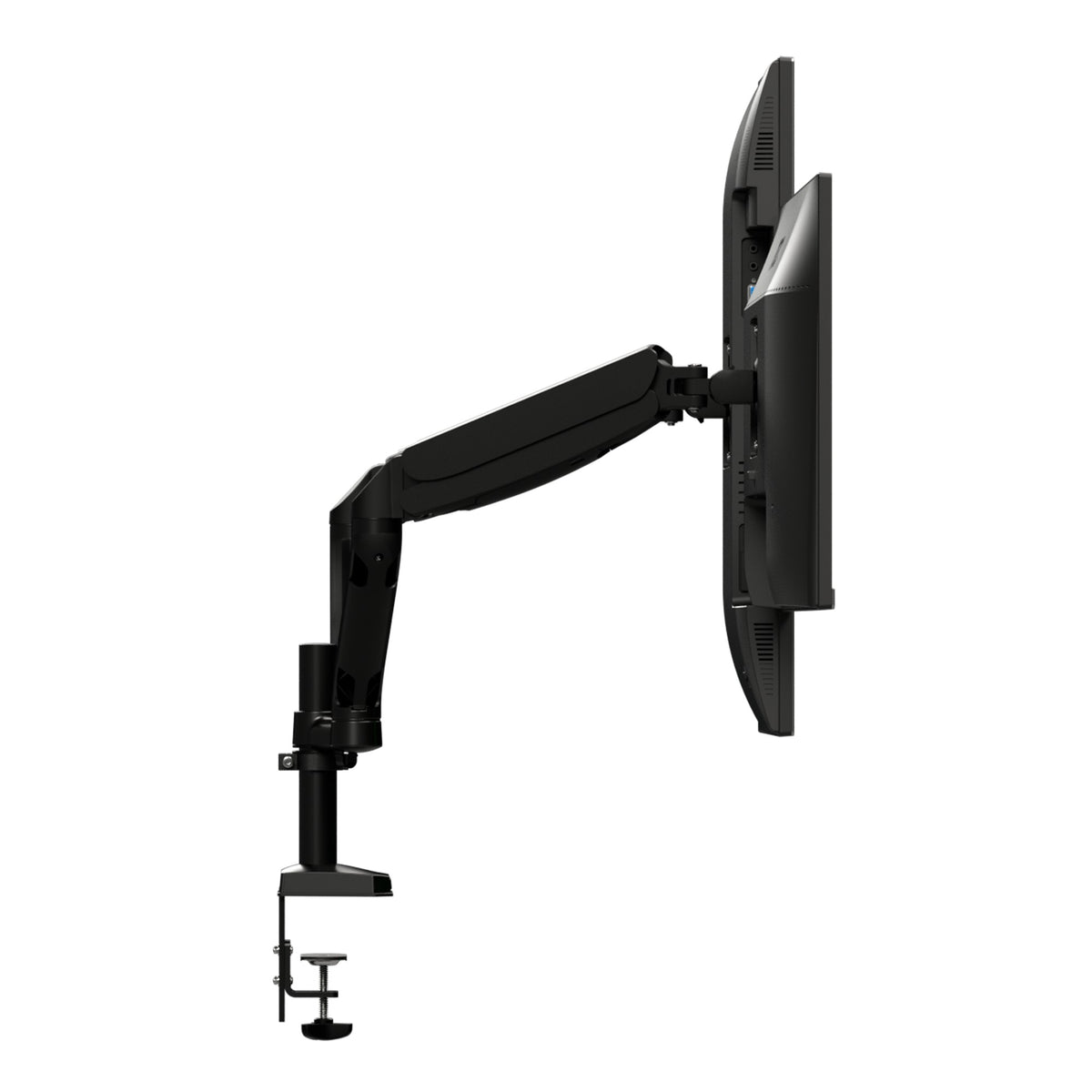

Dual monitor arm for up to 32“ displays The gas-spring loaded, sleek AD100 dual monitor arm can be clamped to desks, holds two displays up to 32“ size. 360° pivot range, wide tilt range, 320 mm height range delivers huge flexibility.
Mounting
Maximum weight capacity (per display)
9 kg
Desk thickness (min)
1.5 cm
Desk thickness (max)
8 cm
Minimum screen size
33 cm (13")
Panel mounting interface
100 x 100,75 x 75 mm
Number of displays supported
2
Mounting type
Desk
Minimum VESA mount
75 x 75 mm
Maximum VESA mount
100 x 100 mm
Mounting
Clamp/Bolt-through
Maximum weight capacity
9 kg
Maximum screen size
81.3 cm (32")
Clamp mount desk thickness (max)
8 cm
Grommet mount desk thickness (max)
8 cm
Mounting hole range
7 - 87 mm
Ergonomics
Cable management
Yes
Adjustable depth
Yes
Depth adjustment range
0 - 460 mm
Height adjustment
Yes
Height adjustment range
320 - 440 mm
Pivot angle
0 - 3600°
Swivel angle range
-900 - 900°
Swivel angle
360°
Tilt angle range
-450 - 600°
Height adjustment type
Gas spring
Tilt adjustment
Yes
Swivelling
Yes
Design
Product colour
Black
Housing material
Aluminium
Technical details
Mounting type
Desk
Product colour
Black
Cable management
Yes
Warranty period
5 year(s)
Adjustment type
Gas spring
Height adjustment
32 cm
Weight (with stand)
5.7 kg
Weight & dimensions
Width
69 mm
Depth
12.5 mm
Height
24.5 mm
Weight
4.12 kg
Package width
125 mm
Package depth
690 mm
Package height
245 mm
Package weight
5.1 kg
Packaging data
Package width
125 mm
Package depth
690 mm
Package height
245 mm
Package weight
5.1 kg
Clamp included
Yes
Manual
Yes
Packaging content
Clamp included
Yes
Manual
Yes
Packaging content
User Manual, Monitor Arm, Clamp mount, Grommet mount, Installation materials
