Allied Telesis

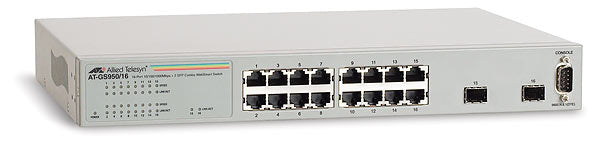

Allied Telesis AT-GS950/16 Managed
Allied Telesis AT-GS950/16 Managed
Regular price
£317.41 GBP
Regular price
Sale price
£317.41 GBP
Taxes included.
Quantity
Couldn't load pickup availability
The WebSmart AT-GS950/16 features a Web-based interface that allows you to set up 802.1Q VLANs to segregate traffic, QoS to prioritize mission-critical data such as voice or video packets, and link aggregation to create traffic pipelines. The AT-GS950/16 also provides network monitoring tools such as port mirroring and basic port statistics. Remote product management enables simple monitoring from anywhere you have connectivity. This WebSmart switch provides managed features for simple QoS applications, 16 10/100/1000T ports and two combo SFP ports for Gigabit connections.
| Performance | |
|---|---|
| Packet buffer memory | 0.5 MB |
| Stackable | No |
| Internal memory | 8 MB |
| Flash memory | 2 MB |
| Technical details | |
| Stackable | No |
| Management features | |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Combo SFP ports quantity | 2 |
| SFP/SFP+ slots quantity | 2 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1s, IEEE 802.1W, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Data transmission | |
| Packet buffer memory | 0.5 MB |
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Maximum data transfer rate | 1 Gbit/s |
| Certificates | |
| Certification | UL 1950 FCC/EN55022 Class A VCCI Class A C-Tick EN60950 (TUV) EN55024 CE |
| Memory | |
| Packet buffer memory | 0.5 MB |
| Internal memory | 8 MB |
| Flash memory | 2 MB |
| Operational conditions | |
| Non-operating relative humidity (non-condensing) | 5 - 95% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Design | |
| Stackable | No |
| Certification | UL 1950 FCC/EN55022 Class A VCCI Class A C-Tick EN60950 (TUV) EN55024 CE |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Weight & dimensions | |
| Weight | 2.38 kg |
| Other features | |
| Dimensions (WxDxH) | 352 x 256 x 43.2 mm |
| Power requirements | 100-240V AC, 50/60Hz |
| Packet transfer speed | 1488000 pps |
| Networking features | Gigabit Ethernet |
| Non-operating relative humidity (non-condensing) | 5 - 95% |
