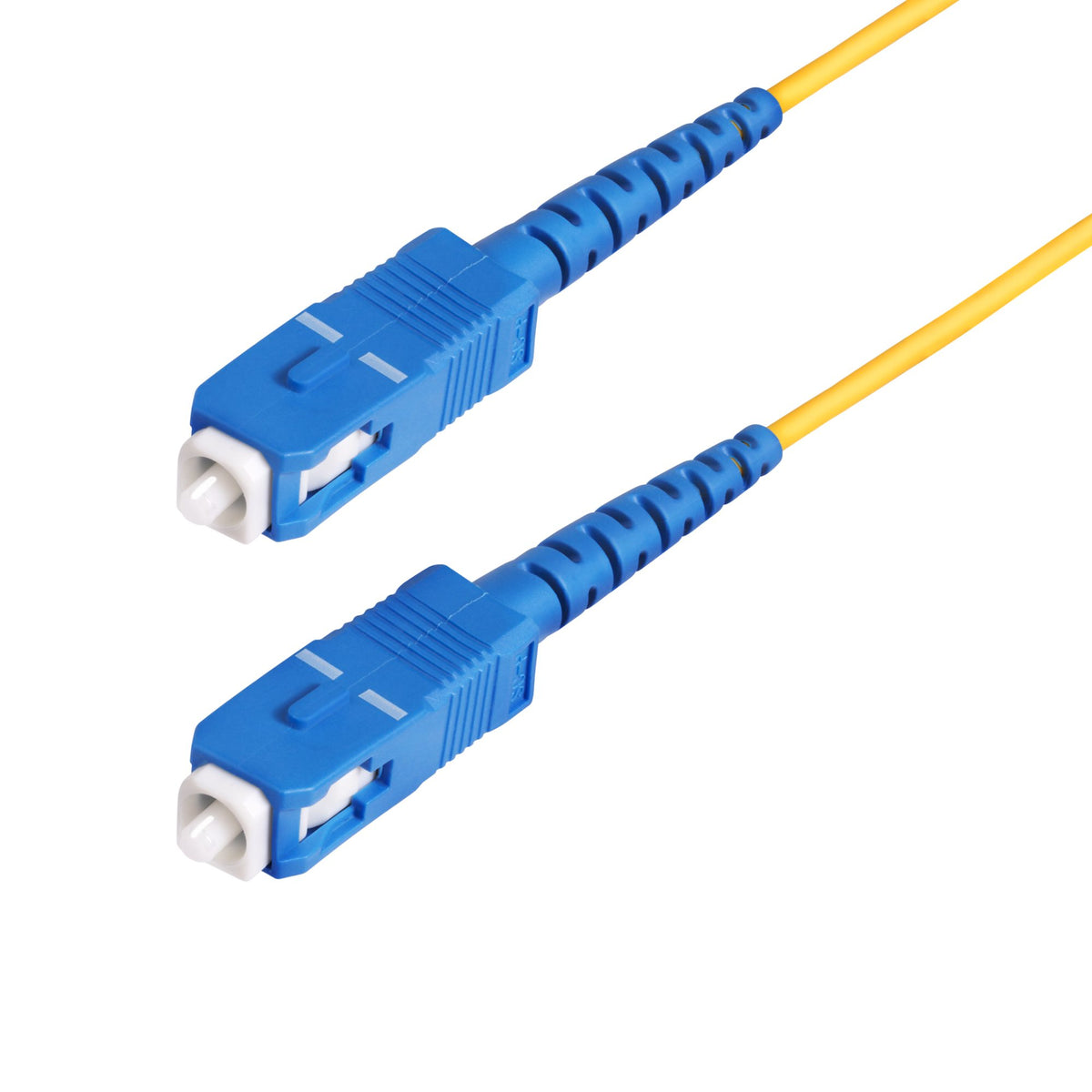

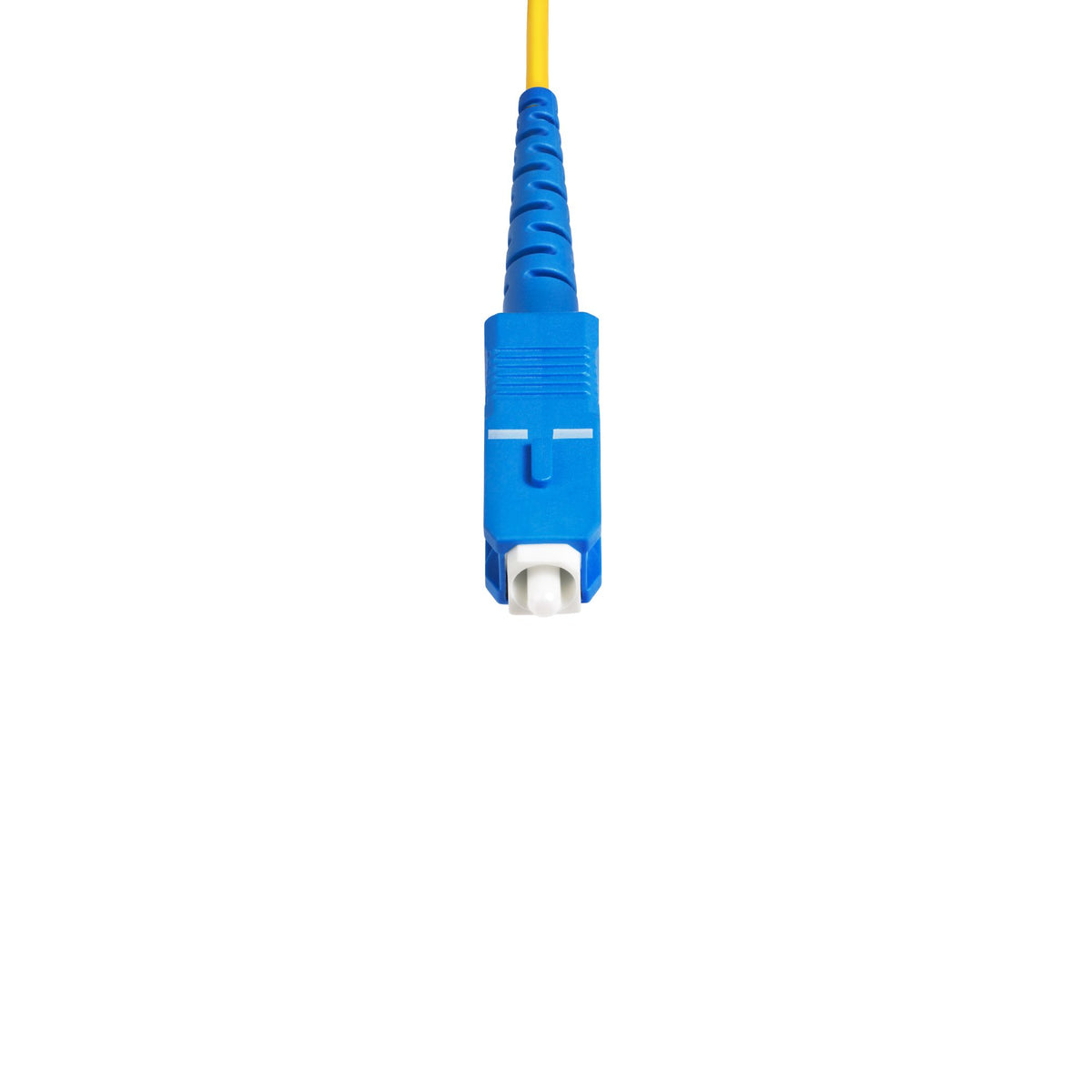

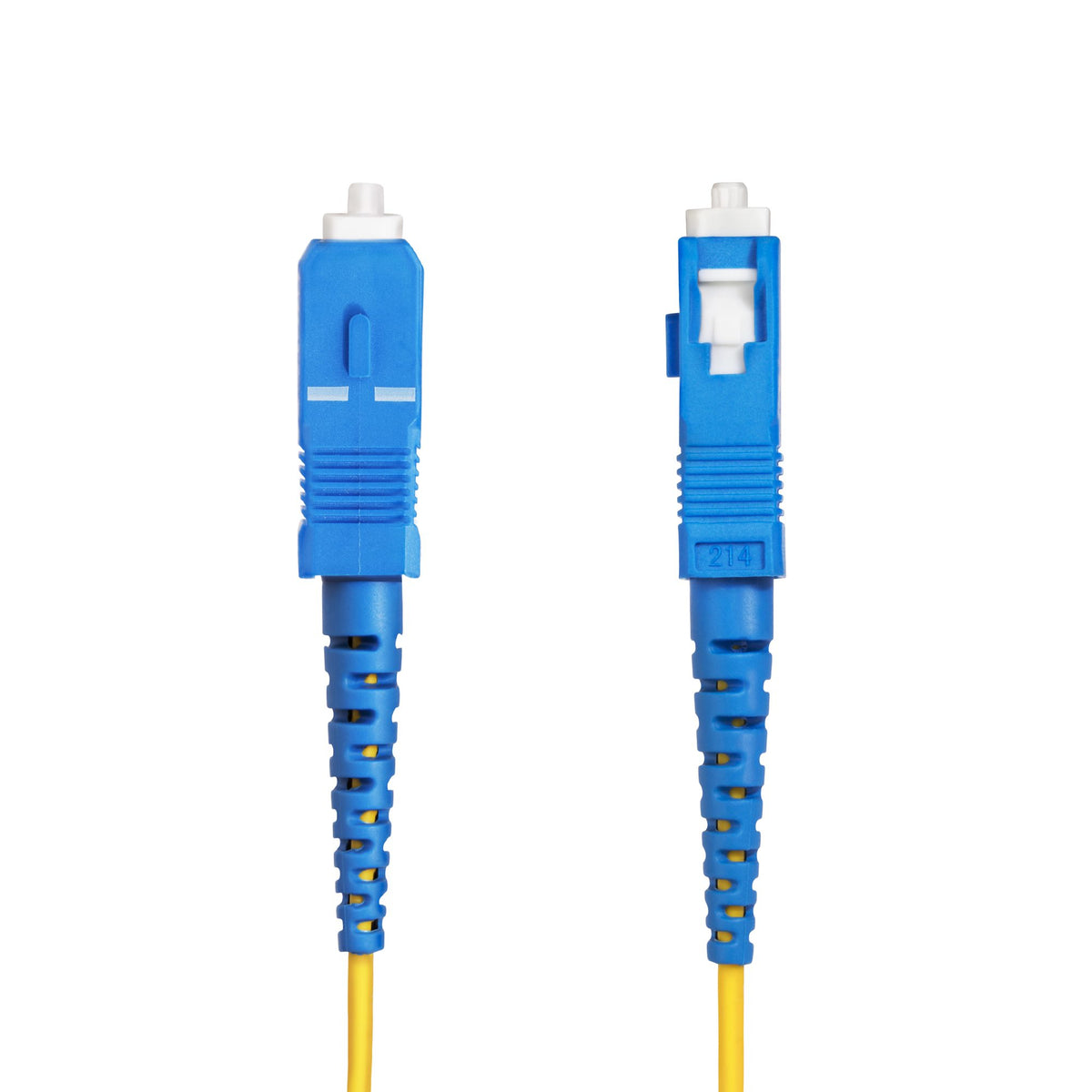

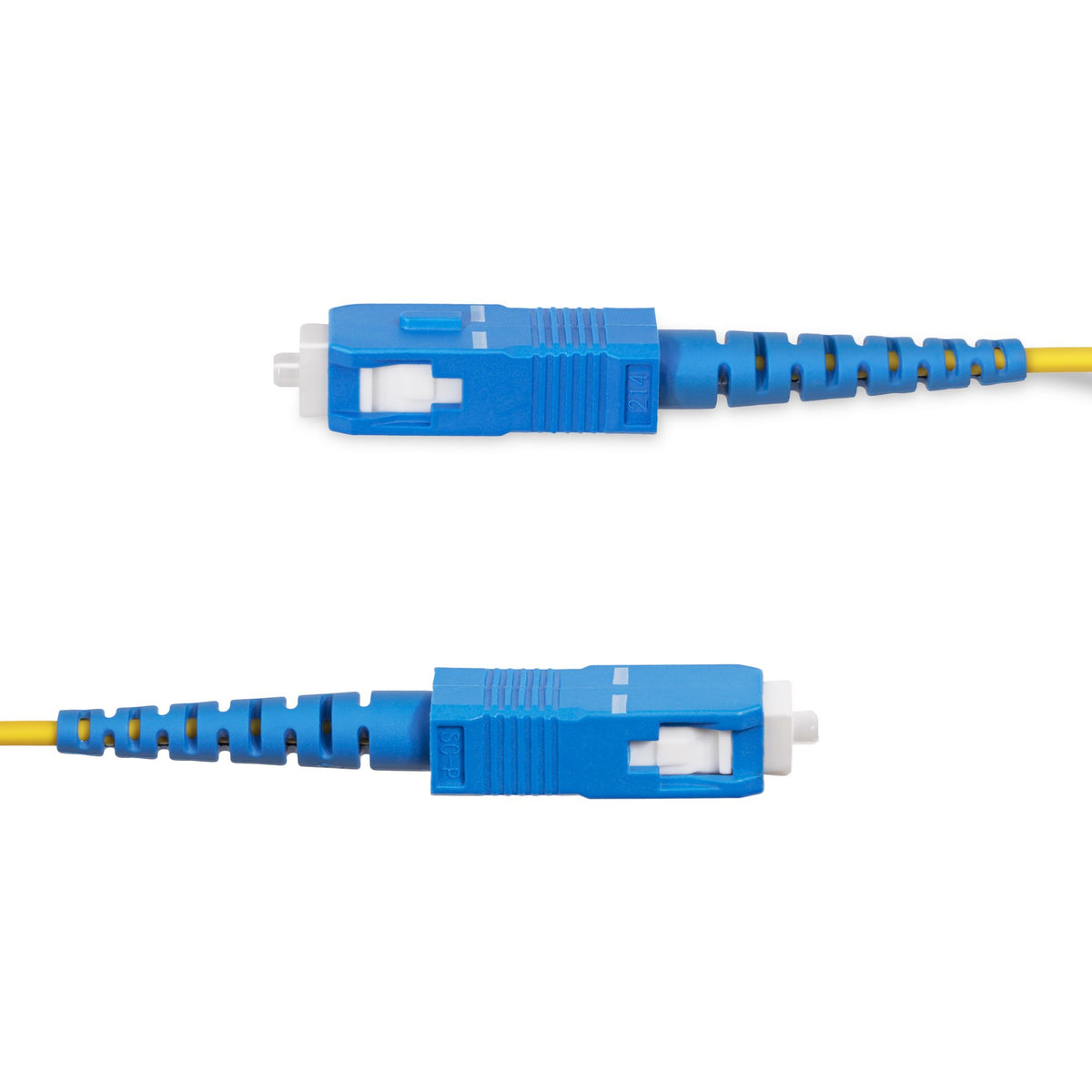

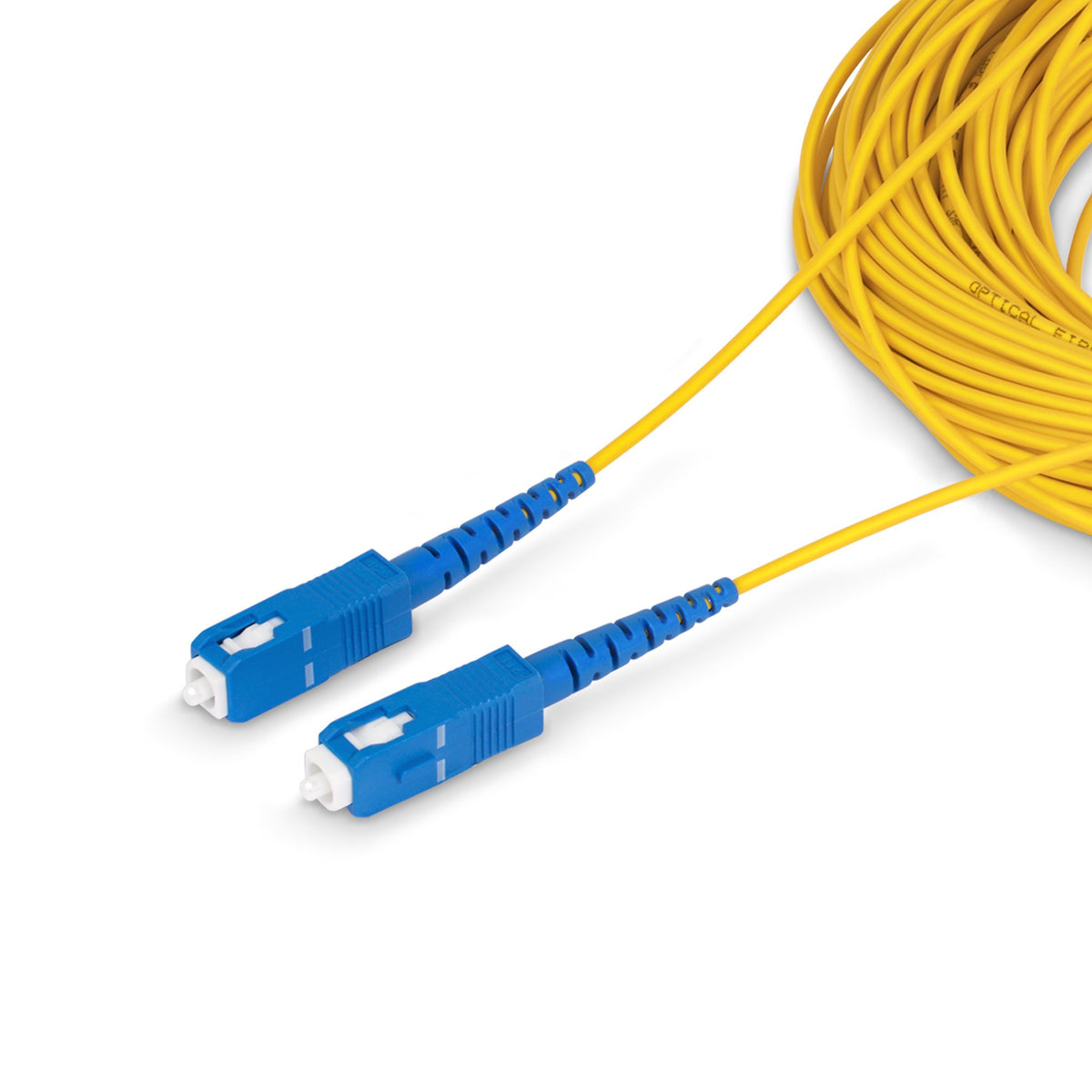

StarTech.com 100m (328ft) SC to SC (UPC) OS2 Single Mode Simplex Fiber Optic Cable, 9/125µm, 40G/100G, Bend Insensitive, Low Insertion Loss, LSZH Fiber Jumper Cord

Enhance the performance capabilities of CWDM applications over an OS2 fiber network

OS2 SC to SC Single Mode Simplex Fiber Optic Patch cable facilitates connectivity across 40G/100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long distances.

Compatibility

Connect to single-fiber networking devices including simplex patch panels, SFP transceivers, and fiber NICs. This 9/125µm OS2 simplex single mode fiber patch cord is backward compatible with OS1 networks, ensuring a reliable connection in legacy fiber environments.

Engineered for Optimal Performance

Precision-manufactured ceramic ferrules ensure accurate fiber alignment for an insertion loss below 0.3dB. Ultra Physical Contact (UPC)-polished SC to SC fiber ends greatly improve return loss characteristics over older PC polishing techniques. The Bend Insensitive fiber core is surrounded by a layer of low refractive index material. This material reduces the amount of light that can escape the fiber cable by reflecting the light back into the fiber. The OS2 fiber patch cord is engineered for low attenuation and performance that exceeds ITU-T G652.D/G657.A1 and IEC60703-2-50 type B1.3/B6.a1 industry standards.

LSZH Cable Jacket

Housed in a Low-Smoke Zero-Halogen (LSZH) flame-retardant jacket, the OS2 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.

Each OS2 fiber cable is individually tested for insertion loss performance and includes a test report, for guaranteed compatibility and 100% reliability.

Features
Fibre optic type	OS2
Return loss	55 dB
Jacket material	Polypropylene, Low smoke zero halogen (LSZH)
Fiber mode structure	Single-mode
Connector 1	SC
Connector 2	SC
Cable type	SC/UPC
Cable length	100 m
Core diameter	9 µm
Cladding diameter	125 µm
Insertion loss	0.3 dB
Data transfer rate	100 Gbit/s
Wavelengths supported	1280,1550,1300,1590,1310,1600,1383,1625,1260,1490 nm
Product colour	Yellow
Connector 2 gender	Male
Connector 1 gender	Female
Bending radius	1 cm
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Sustainability
Sustainability compliance	Yes
Certificates
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Weight & dimensions
Bending radius	1 cm
Cable diameter	2 mm
Cable length	100 m
Package width	217 mm
Package depth	221 mm
Package height	40 mm
Package weight	356.1 g
Packaging data
Package width	217 mm
Package depth	221 mm
Package height	40 mm
Package weight	356.1 g
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
Technical details
Jacket material	Polypropylene, Low smoke zero halogen (LSZH)
Fiber mode structure	Single-mode
Connector 1	SC
Connector 2	SC
Cable type	SC/UPC
Cable length	100 m
Core diameter	9 µm
Cladding diameter	125 µm
Insertion loss	0.3 dB
Attenuation (max)	0.35 dB/km
Sustainability compliance	Yes
Compliance certificates	RoHS
Data transmission
Data transfer rate	100 Gbit/s
Logistics data
Quantity per pack	1 pc(s)
Master (outer) case width	380 mm
Master (outer) case length	380 mm
Master (outer) case height	280 mm
Products per master (outer) case	20 pc(s)
Other features
Attenuation (max)	0.35 dB/km
