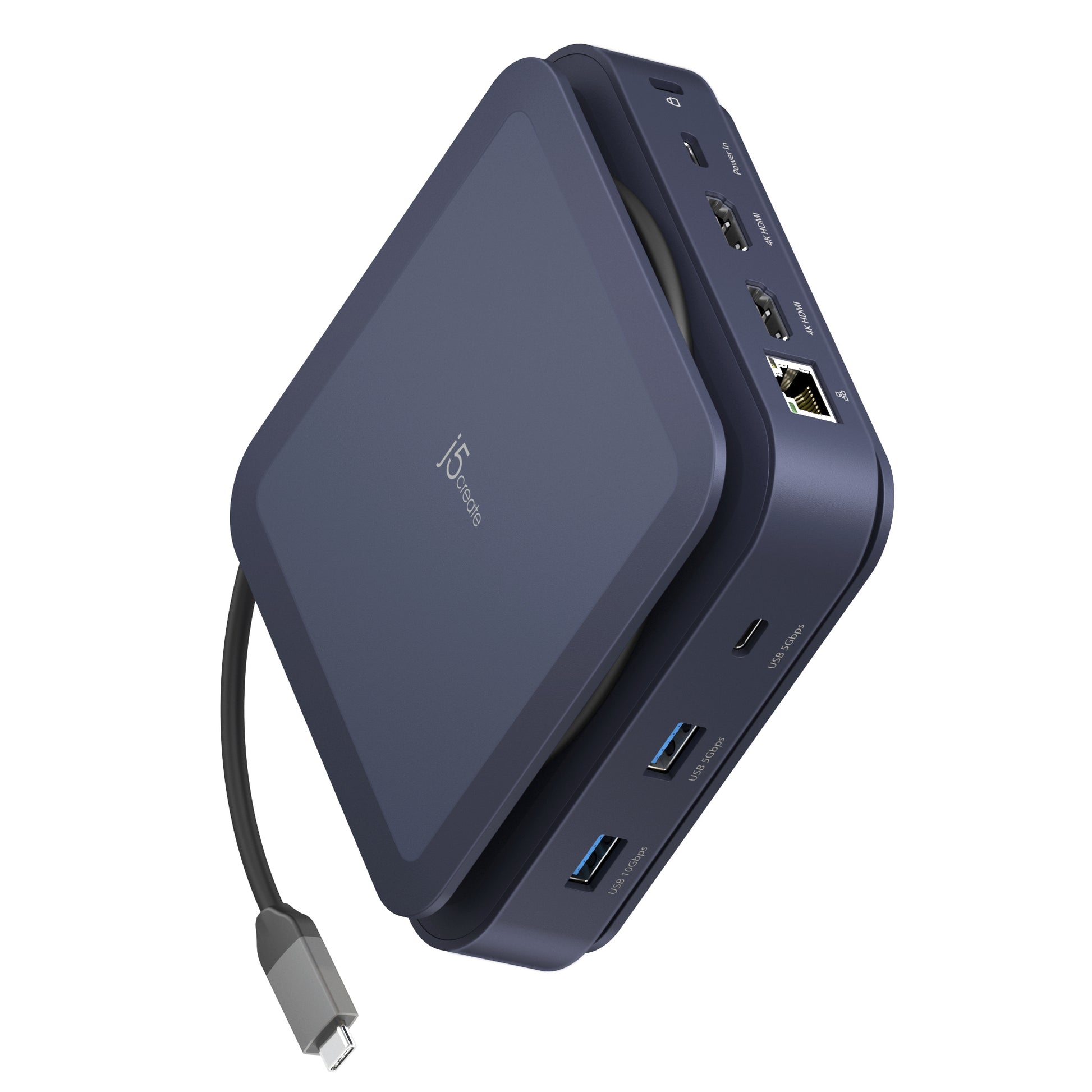

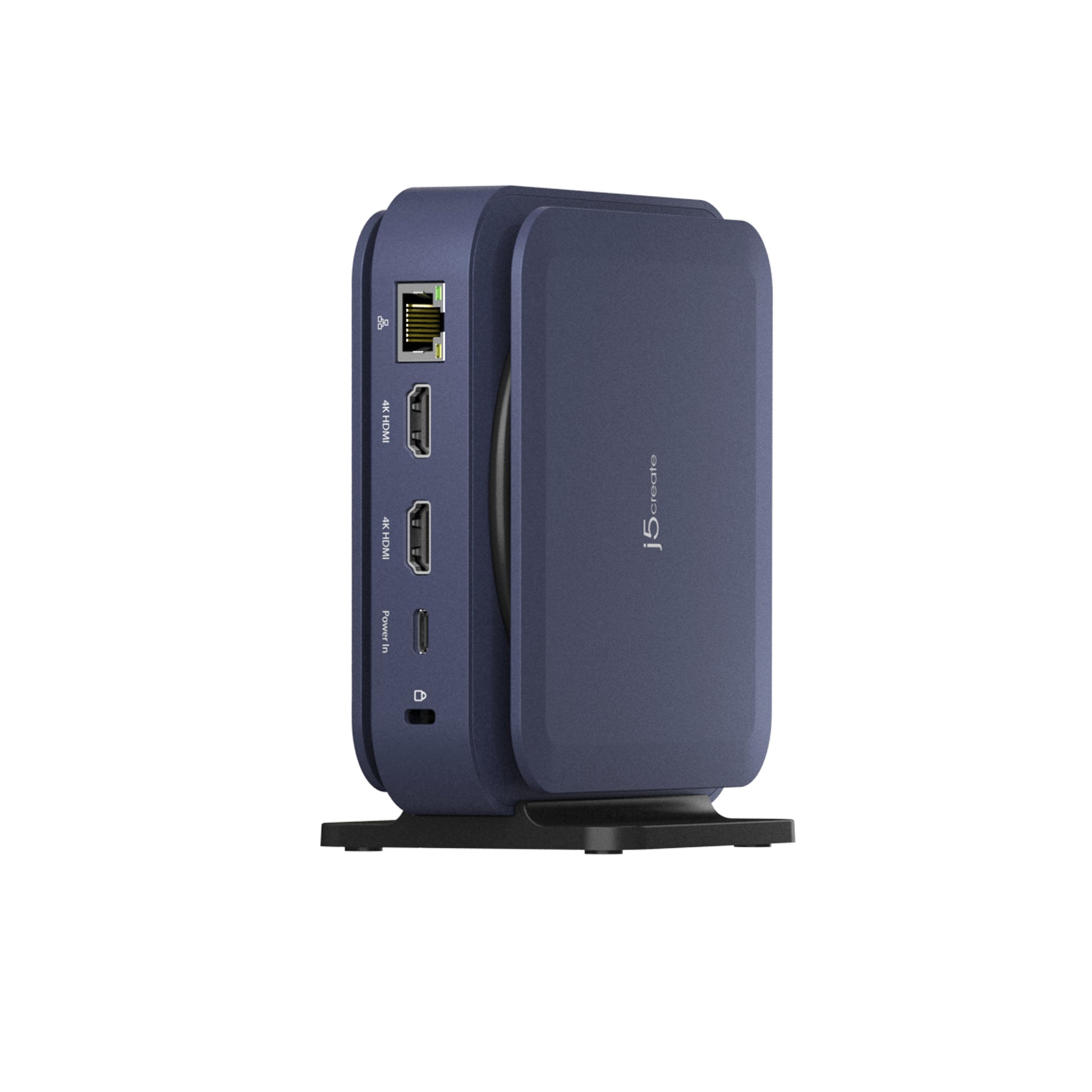

The j5create JCD3196 is a USB-C docking station that drives dual 4K HDMI displays while adding Gigabit Ethernet, USB ports and up to 140W USB Power Delivery. It turns a single Type-C connection into a complete, productive desk setup.
j5create JCD3196 Type-C Dock Dual 4K HDMI™, Black. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 140 W. Ethernet LAN data rates: 1000 Mbit/s. Product colour: Blue, Colour name: Dark Blue, Compatible memory cards: MicroSD (TransFlash), SD. Windows operating systems supported: Windows 10, Windows 11. Width: 130 mm, Depth: 130 mm, Height: 40 mm
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.1 |
| USB Power Delivery up to | 140 W |
| HDMI ports quantity | 2 |
| Microphone in | Yes |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Performance | |
| Colour name | Dark Blue |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Data transfer rate | 10 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Cable lock slot | Yes |
| Product colour | Blue |
| Housing material | Plastic |
| Country of origin | Taiwan |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -1 - 41 °C |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Width | 130 mm |
| Depth | 130 mm |
| Height | 40 mm |
| Weight | 236 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 145 mm |
| Package depth | 140 mm |
| Package height | 56 mm |
| Package weight | 416 g |
| Packaging content | |
| Packaging content | 1 - JCD3196 Type-C Dock Dual 4K HDMI™ 1 - Dock Holder 1 - Quick Installation Guide (QIG) |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 24712795089039 |
| Warranty period | 2 year(s) |
| Compliance certificates | CE, REACH, RoHS |
| Logistics data | |
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case width | 186 mm |
| Master (outer) case length | 249 mm |
| Master (outer) case height | 174 mm |
| Export Control Classification Number (ECCN) | EAR99 |
| Master (outer) case net weight | 1.9 kg |
| Other features | |
| Cable length | 0.695 m |
